The KC12 active column loudspeaker system in white from QSC delivers powerful yet precise sound for musicians and mobile entertainers. The KC12 provides full-range audio with an impressive 145º horizontal dispersion and 35º vertical coverage. The Class-D power amplifiers—2,000W for the subwoofer and 1,000W for the midrange and high-frequency sections—generate high sound pressure levels without distortion for any venue.
Premium Components for Natural Sound
The KC12 is built from premium materials to accurately reproduce your audio. The 12" low-frequency driver extends down to 40Hz for rich bass, while the dual 4" midrange drivers and 1" compression high-frequency driver provide crisp, full midrange and detailed highs up to 18.5kHz. QSC's Length-Equalized Acoustic Flare (LEAF) waveguide gives the high end a wide, even dispersion for broad coverage. The result is a clear, natural sound at any volume.
Simple Controls for Optimizing Your Sound
Despite its advanced components, the KC12 is easy to operate thanks to its intuitive interface. Use the rotary encoder and buttons to select from preconfigured presets for different instruments and vocals or create your own optimized EQ settings. Level controls for the subwoofer, midrange and highs let you adjust the balance to suit the venue. You can also add reverb or delay up to 200 ms. With simple adjustments, you'll have the KC12 sounding its best for your performance.
Flexible Connectivity for Any Setup
The KC12 provides connections for any audio source. Two combo XLR/1/4" inputs accept mic or line-level signals—one input offers phantom power for condenser mics. A 3.5 mm stereo input takes signals from media players, while Bluetooth connectivity with True Wireless Stereo streams wireless audio from your mobile devices. The KC12 also has XLR outputs to send the mix to another loudspeaker or recording device. With these options, you can plug in mics, keyboards, media players or use the KC12 as a PA system in a simple but powerful setup.
Features
- 3,000W peak power, 132dB max SPL
- 12" subwoofer, 4" mids, 1" HF compression driver
- Bluetooth Audio with True Wireless Stereo
- XLR and Hi-Z inputs with independent presets
- LF Transducer: 12" cone
- MF Transducers: 2 x 4" cone
- HF Transducer: 1" compression driver
- Frequency Response: –6dB 45Hz–18.5kHz
- Frequency Range: –10dB 40Hz–20kHz
- Nominal Coverage Angle: 145° H x 35° V
- Maximum Rated SPL1 (peak): 132dB @ 1m
- Amplification (peak): Class-D, 3,000W (KC12S Subwoofer 2,000W, KC12T Midrange/High Frequencies 1,000W)
- Cooling: Low noise, variable speed fan
- Controls: 1 x Rotary encoder and 2 x Push buttons
- 3 x Rotary level potentiometers
- 1 x AC power switch Indicators
- Monochrome LCD Display 1.75" x 1"
- 2 x Power LEDs (blue), Subwoofer front and rear
- 1 x Standby LED (yellow)
- 1 x Limiter LED (red)
- 3 x Input Signal/Clip LEDs (Signal: green/Clipping: red)
- Input A: Mic/Line with assignable Hi-Z selected LED
- Input B: Mic/Line with assignable +48V selected LED
- Input C: Bluetooth selected LED
- 2 x locking XLR/F 1/4" combo (Mic/Line with assignable Hi-Z and Mic/Line with assignable +48V)
- 2 x XLR/M (1 x Loop-thru/1 x Assignable Mix Output Post-DSP)
- 1 x 3.5 mm TRS (Stereo Input)
- 1 x USB-C (5V 3A Output for charging mobile devices/Firmware Update)
- 1 x locking IEC power connector
- AC Power Input Universal power supply, 100-240VAC, 50/60Hz
- AC Power Consumption
- 100-240 VAC ~ 3.7-1.8A
- KC12T 145° Dual 4" Column System Loudspeaker
- KC-SP32 32" Column System Pole
- KC12S 3kW Active12" Column System Subwoofer
- Impact resistant ABS, 12 mm birch plywood and powder-coated aluminum
- Color Black (RAL 9011), White (RAL 9010)
- Grille Powder-coated steel with internal cloth lining (KC12T: 21 Gauge/KC12S: 18 Gauge)
- System Height Tall Deployment: 89.4" (with KC-SP32)
- Short Deployment: 57.6" (without KC-SP32)
- KC12T: 35" x 5.6" x 6.2"
- KC-SP32: 34.7" x 3" x 1.8"
- KC12S: 25.8" x 14" x 18"
- Net Weight Tall Deployment: 60.3 lb. (with KC-SP32, sold separately)
- KC12T: 8.9 lb.
- KC-SP32: 2.9 lb.
- KC12S: 48.5 lb.
- KC12 TOTE: Tote for transportation/storage of KC12T and KC-SP32
- Accessory KC12 CVR: Cover for KC12S
Specs

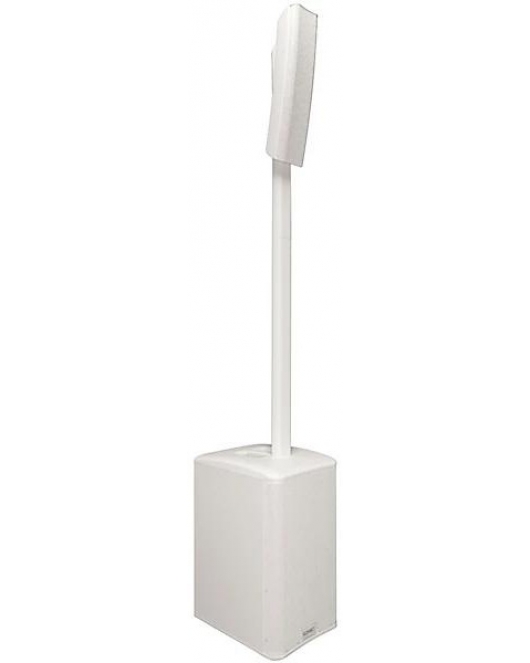

QSC KC12 Active 3-Way Column Loudspeaker White
- Product Code: 1500000445265
The KC12 active column loudspeaker system in white from QSC delivers powerful yet precise sound for musicians and mobile entertainers. The KC12 provides full-range audio with an impressive 145º horizontal dispersion and 35º vertical coverage. The Class-D power amplifiers—2,000W for the subwoofer and 1,000W for the midrange and high-frequency sections—generate high sound pressure levels without distortion for any venue.
Premium Components for Natural Sound
The KC12 is built from premium materials to accurately reproduce your audio. The 12" low-frequency driver extends down to 40Hz for rich bass, while the dual 4" midrange drivers and 1" compression high-frequency driver provide crisp, full midrange and detailed highs up to 18.5kHz. QSC's Length-Equalized Acoustic Flare (LEAF) waveguide gives the high end a wide, even dispersion for broad coverage. The result is a clear, natural sound at any volume.
Simple Controls for Optimizing Your Sound
Despite its advanced components, the KC12 is easy to operate thanks to its intuitive interface. Use the rotary encoder and buttons to select from preconfigured presets for different instruments and vocals or create your own optimized EQ settings. Level controls for the subwoofer, midrange and highs let you adjust the balance to suit the venue. You can also add reverb or delay up to 200 ms. With simple adjustments, you'll have the KC12 sounding its best for your performance.
Flexible Connectivity for Any Setup
The KC12 provides connections for any audio source. Two combo XLR/1/4" inputs accept mic or line-level signals—one input offers phantom power for condenser mics. A 3.5 mm stereo input takes signals from media players, while Bluetooth connectivity with True Wireless Stereo streams wireless audio from your mobile devices. The KC12 also has XLR outputs to send the mix to another loudspeaker or recording device. With these options, you can plug in mics, keyboards, media players or use the KC12 as a PA system in a simple but powerful setup.
Features
- 3,000W peak power, 132dB max SPL
- 12" subwoofer, 4" mids, 1" HF compression driver
- Bluetooth Audio with True Wireless Stereo
- XLR and Hi-Z inputs with independent presets
- LF Transducer: 12" cone
- MF Transducers: 2 x 4" cone
- HF Transducer: 1" compression driver
- Frequency Response: –6dB 45Hz–18.5kHz
- Frequency Range: –10dB 40Hz–20kHz
- Nominal Coverage Angle: 145° H x 35° V
- Maximum Rated SPL1 (peak): 132dB @ 1m
- Amplification (peak): Class-D, 3,000W (KC12S Subwoofer 2,000W, KC12T Midrange/High Frequencies 1,000W)
- Cooling: Low noise, variable speed fan
- Controls: 1 x Rotary encoder and 2 x Push buttons
- 3 x Rotary level potentiometers
- 1 x AC power switch Indicators
- Monochrome LCD Display 1.75" x 1"
- 2 x Power LEDs (blue), Subwoofer front and rear
- 1 x Standby LED (yellow)
- 1 x Limiter LED (red)
- 3 x Input Signal/Clip LEDs (Signal: green/Clipping: red)
- Input A: Mic/Line with assignable Hi-Z selected LED
- Input B: Mic/Line with assignable +48V selected LED
- Input C: Bluetooth selected LED
- 2 x locking XLR/F 1/4" combo (Mic/Line with assignable Hi-Z and Mic/Line with assignable +48V)
- 2 x XLR/M (1 x Loop-thru/1 x Assignable Mix Output Post-DSP)
- 1 x 3.5 mm TRS (Stereo Input)
- 1 x USB-C (5V 3A Output for charging mobile devices/Firmware Update)
- 1 x locking IEC power connector
- AC Power Input Universal power supply, 100-240VAC, 50/60Hz
- AC Power Consumption
- 100-240 VAC ~ 3.7-1.8A
- KC12T 145° Dual 4" Column System Loudspeaker
- KC-SP32 32" Column System Pole
- KC12S 3kW Active12" Column System Subwoofer
- Impact resistant ABS, 12 mm birch plywood and powder-coated aluminum
- Color Black (RAL 9011), White (RAL 9010)
- Grille Powder-coated steel with internal cloth lining (KC12T: 21 Gauge/KC12S: 18 Gauge)
- System Height Tall Deployment: 89.4" (with KC-SP32)
- Short Deployment: 57.6" (without KC-SP32)
- KC12T: 35" x 5.6" x 6.2"
- KC-SP32: 34.7" x 3" x 1.8"
- KC12S: 25.8" x 14" x 18"
- Net Weight Tall Deployment: 60.3 lb. (with KC-SP32, sold separately)
- KC12T: 8.9 lb.
- KC-SP32: 2.9 lb.
- KC12S: 48.5 lb.
- KC12 TOTE: Tote for transportation/storage of KC12T and KC-SP32
- Accessory KC12 CVR: Cover for KC12S
