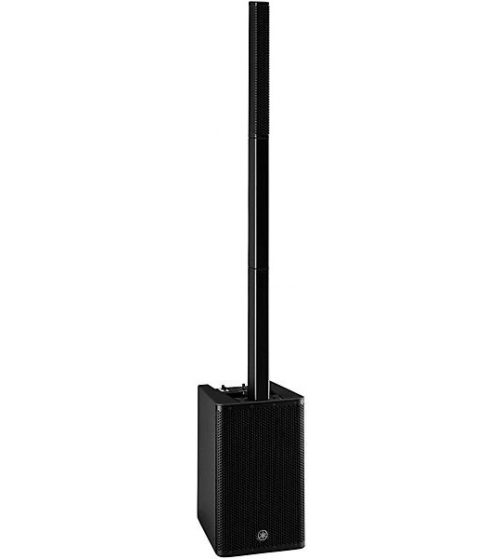

The Yamaha DXL1K was purpose-built for situations that require one or more wide dispersion speaker systems. When used with an outboard mixer, the simplicity of the DXL1K makes setup an operation a breeze.

The DXL1K can also be used along with the STAGEPAS 1K MKII when a stereo system is desired. Simply run a single cable from the STAGEPAS 1K MKII to link the units. The DXL1K is the first powered loudspeaker with this form factor in the market. The combination of an easy setup procedure that only requires the line array speaker to be attached to the top of the subwoofer cabinet, with the system expandability offered by the Link function, allows the DXL1K to be used in combination with a compact mixer or with the fully compatible STAGEPAS 1K mkII, creating a simple, compact and high-quality PA system.

Features

  • Column-style powered speaker system
  • High-quality sound with uniform dispersion
  • Lightweight and durable construction for reliability on the go
  • Compatible with the STAGEPAS 1K MKII portable PA system
  • Included in package
  • DLX1K powered speaker
  • Dedicated cover
  • AC power cable
  • Owner's manual

    • Specs

    System
    • Type: Powered subwoofer with a line array speaker
    • Frequency response (–10dB): 37Hz–20kHz
    • Number of mixing channels: 2
    • Coverage angle (horizontal x vertical): 170° x 30°
    • Crossover frequency: 240Hz
    • Maximum output level (measured peak, IEC noise @ 1 m): 125dB SPL
    Power Requirements
    • 100V: 50/60Hz
    • 220–230V: 50/60Hz
    • 220–230V: 60Hz
    • 110V/220V: 60Hz
    • 110–120V: 60Hz,
    • 220–240V: 50/60Hz
    • 220V: 50Hz
    • Power consumption: 25W (Idle), 91W (1/8 power)
    Dimensions (WxHxD)
    • System (maximum) 13.15" x 78.74" x 16.46"
    • Weight: 50.71 lb.
    Analog Inputs
    • Mono mic/line: 1
    • Mono line: 1
    • LINK IN (mono)
    • EQ and Effects
    • MODE (SPEECH/MUSIC/CLUB)
    Outputs
    • LINK OUT (mono/R)
    Rated Output
    • Dynamic: 1,100W (subwoofer: 500W, line array speaker: 600W)
    Enclosure
    • Line array speaker: Enclosed
    • Subwoofer: Bass-reflex type
    • Nominal Impedance
    • Line array speaker: 8 ohms
    • Subwoofer: 4 ohms

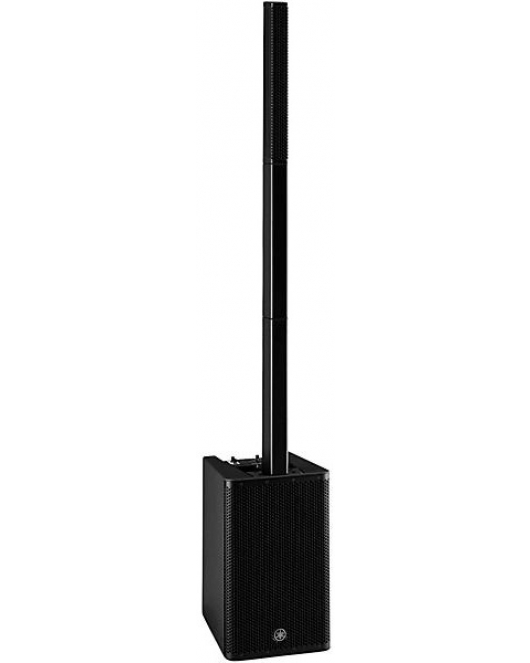

Yamaha DXL1K Powered Speaker System

  • Product Code: 1500000384185
The Yamaha DXL1K was purpose-built for situations that require one or more wide dispersion speaker systems. When used with an outboard mixer, the simplicity of the DXL1K makes setup an operation a breeze.

The DXL1K can also be used along with the STAGEPAS 1K MKII when a stereo system is desired. Simply run a single cable from the STAGEPAS 1K MKII to link the units. The DXL1K is the first powered loudspeaker with this form factor in the market. The combination of an easy setup procedure that only requires the line array speaker to be attached to the top of the subwoofer cabinet, with the system expandability offered by the Link function, allows the DXL1K to be used in combination with a compact mixer or with the fully compatible STAGEPAS 1K mkII, creating a simple, compact and high-quality PA system.

Features

  • Column-style powered speaker system
  • High-quality sound with uniform dispersion
  • Lightweight and durable construction for reliability on the go
  • Compatible with the STAGEPAS 1K MKII portable PA system
  • Included in package
  • DLX1K powered speaker
  • Dedicated cover
  • AC power cable
  • Owner's manual

    • Specs

    System
    • Type: Powered subwoofer with a line array speaker
    • Frequency response (–10dB): 37Hz–20kHz
    • Number of mixing channels: 2
    • Coverage angle (horizontal x vertical): 170° x 30°
    • Crossover frequency: 240Hz
    • Maximum output level (measured peak, IEC noise @ 1 m): 125dB SPL
    Power Requirements
    • 100V: 50/60Hz
    • 220–230V: 50/60Hz
    • 220–230V: 60Hz
    • 110V/220V: 60Hz
    • 110–120V: 60Hz,
    • 220–240V: 50/60Hz
    • 220V: 50Hz
    • Power consumption: 25W (Idle), 91W (1/8 power)
    Dimensions (WxHxD)
    • System (maximum) 13.15" x 78.74" x 16.46"
    • Weight: 50.71 lb.
    Analog Inputs
    • Mono mic/line: 1
    • Mono line: 1
    • LINK IN (mono)
    • EQ and Effects
    • MODE (SPEECH/MUSIC/CLUB)
    Outputs
    • LINK OUT (mono/R)
    Rated Output
    • Dynamic: 1,100W (subwoofer: 500W, line array speaker: 600W)
    Enclosure
    • Line array speaker: Enclosed
    • Subwoofer: Bass-reflex type
    • Nominal Impedance
    • Line array speaker: 8 ohms
    • Subwoofer: 4 ohms
  • Brand: Yamaha
  • Viewed: 14
  • Availability: In Stock
Yamaha

$589.00
