The DPA Microphones 2011A Stereo Pair mics are acclaimed for their close-miking excellence and hi-SPL handling. Optimized for onstage use, these mics have been used on many stages as well as recording sessions. They exhibit a previously unheard blend of clarity, richness and dynamic range. The off-axis response is linear but in a smaller frequency bandwidth. This makes stage separation and gain-to-feedback higher, and the mic level is easier to control.

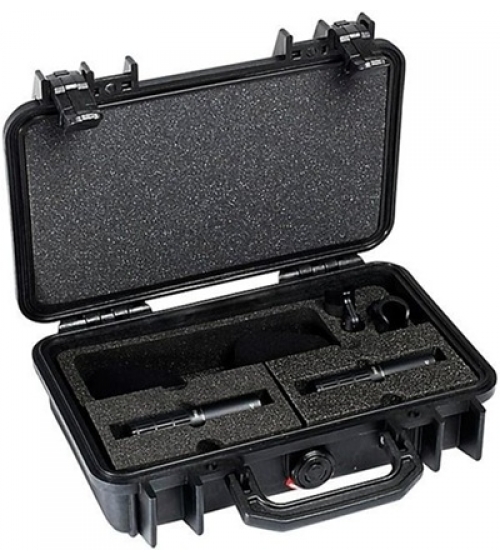

The foam design in the heavy-duty transportation box allows for fast and easy exchange of the microphone/accessory inlays.
The wide and versatile pencil mic series is legendary in the high-end recording and film production industry. Delivering clean, accurate sound, the mics in this series are used by professionals, who understand sound and insist on only using the best.
The foam design in the heavy-duty transportation box allows for fast and easy exchange of the microphone/accessory inlays.
The wide and versatile pencil mic series is legendary in the high-end recording and film production industry. Delivering clean, accurate sound, the mics in this series are used by professionals, who understand sound and insist on only using the best.
Features
- Modularity – interchangable capsules and preamplifiers
- Up to 120 dB dynamic range
- RF rejection between >60 and >40 dB
- Linear frequency response
- High SPL
- Superior gain before feedback
- Directional pattern: Cardioid
- Principle of operation: Pressure gradient, with interference tube
- Cartridge type: Pre-polarized condenser, Twin Diaphragm Capsule
- Frequency response: 20 Hz - 20 kHz
- Effective frequency range, ±2 dB, at 30 cm (11.8 in): 50 Hz - 17 kHz with 3 dB soft boost at 12 kHz
- Sensitivity, nominal, ±2 dB at 1 kHz: 10 mV/Pa; -40 dB re. 1 V/Pa
- Equivalent noise level, A-weighted: Typ. 20 dB(A) re. 20 µPa (max. 23 dB(A))
- Equivalent noise level, ITU-R BS.468-4: Typ. 33 dB (max. 36 dB)
- Distortion, THD < 1%: 134 dB SPL RMS, 137 dB SPL peak
- Dynamic range: Typ. 117 dB
- Max. SPL, THD 10%: 153 dB SPL peak
- Switchable attenuator, filters etc.: 0 dB / -20 dB
- Rated output impedance: 200 ohm
- Minimum load impedance: 2 kohm
- Cable drive capability: 100 m (328 ft)
- Output balance principle: Impedance balancing with Active Drive
- Common mode rejection ratio (CMRR): > 60 dB
- Power supply (for full performance): P48 (Phantom Power)
- Current consumption: 2.8 mA
- Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
- Color: Matte black
- Weight: 164 g (5.8 oz)
- Microphone diameter: 19 mm (0.75 in)
- Microphone length: 198 mm (7.8 in)
- Maximum output voltage, RMS: 8 V
- Polarity: +V at pin 2 for positive sound pressure
- Temperature range: -40°C to 45°C (-40°F to 113°F)
- Relative humidity (RH): Up to 90%
- Sensitivity selection tolerance (at 1 kHz): ±1.5 dB
Specs

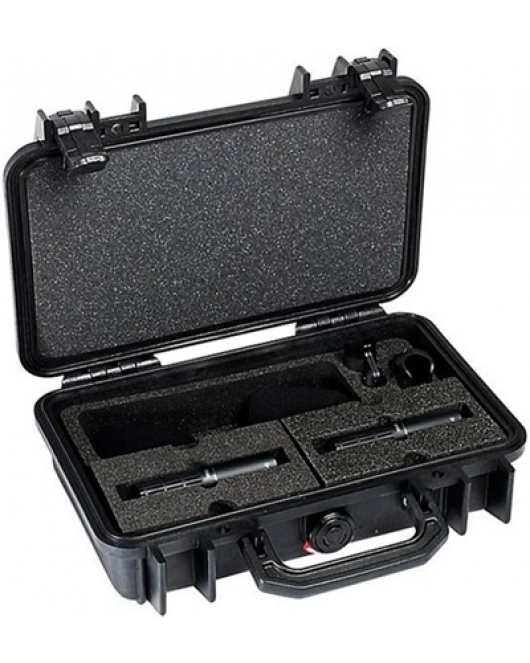

DPA 2011A Stereo Pair with Clips and Windscreens
- Product Code: 1500000408467
The DPA Microphones 2011A Stereo Pair mics are acclaimed for their close-miking excellence and hi-SPL handling. Optimized for onstage use, these mics have been used on many stages as well as recording sessions. They exhibit a previously unheard blend of clarity, richness and dynamic range. The off-axis response is linear but in a smaller frequency bandwidth. This makes stage separation and gain-to-feedback higher, and the mic level is easier to control.
The foam design in the heavy-duty transportation box allows for fast and easy exchange of the microphone/accessory inlays.
The wide and versatile pencil mic series is legendary in the high-end recording and film production industry. Delivering clean, accurate sound, the mics in this series are used by professionals, who understand sound and insist on only using the best.
The foam design in the heavy-duty transportation box allows for fast and easy exchange of the microphone/accessory inlays.
The wide and versatile pencil mic series is legendary in the high-end recording and film production industry. Delivering clean, accurate sound, the mics in this series are used by professionals, who understand sound and insist on only using the best.
Features
- Modularity – interchangable capsules and preamplifiers
- Up to 120 dB dynamic range
- RF rejection between >60 and >40 dB
- Linear frequency response
- High SPL
- Superior gain before feedback
- Directional pattern: Cardioid
- Principle of operation: Pressure gradient, with interference tube
- Cartridge type: Pre-polarized condenser, Twin Diaphragm Capsule
- Frequency response: 20 Hz - 20 kHz
- Effective frequency range, ±2 dB, at 30 cm (11.8 in): 50 Hz - 17 kHz with 3 dB soft boost at 12 kHz
- Sensitivity, nominal, ±2 dB at 1 kHz: 10 mV/Pa; -40 dB re. 1 V/Pa
- Equivalent noise level, A-weighted: Typ. 20 dB(A) re. 20 µPa (max. 23 dB(A))
- Equivalent noise level, ITU-R BS.468-4: Typ. 33 dB (max. 36 dB)
- Distortion, THD < 1%: 134 dB SPL RMS, 137 dB SPL peak
- Dynamic range: Typ. 117 dB
- Max. SPL, THD 10%: 153 dB SPL peak
- Switchable attenuator, filters etc.: 0 dB / -20 dB
- Rated output impedance: 200 ohm
- Minimum load impedance: 2 kohm
- Cable drive capability: 100 m (328 ft)
- Output balance principle: Impedance balancing with Active Drive
- Common mode rejection ratio (CMRR): > 60 dB
- Power supply (for full performance): P48 (Phantom Power)
- Current consumption: 2.8 mA
- Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
- Color: Matte black
- Weight: 164 g (5.8 oz)
- Microphone diameter: 19 mm (0.75 in)
- Microphone length: 198 mm (7.8 in)
- Maximum output voltage, RMS: 8 V
- Polarity: +V at pin 2 for positive sound pressure
- Temperature range: -40°C to 45°C (-40°F to 113°F)
- Relative humidity (RH): Up to 90%
- Sensitivity selection tolerance (at 1 kHz): ±1.5 dB
Specs
- Brand: DPA Microphones
- Viewed: 28
- Availability: In Stock
