The KSM141 is a dual-pattern end-addressed condenser microphone with a rotating collar, allowing easy switching between a consistent cardioid or true omnidirectional polar pattern for smooth and extremely focused sound reproduction. Designed for studio use, yet rugged enough for live applications, the KSM141 can withstand extremely high sound pressure levels (SPL). Its low self-noise and extended frequency response make it ideal for recording musical instruments.
The KSM141 features extended frequency response, pad for handling SPLs, a gold-layered Mylar diaphragm and a subsonic filter for low frequency rumble. Both the acoustic environment and microphone placement strongly affect the sound obtained from miking a source. You may need to experiment with where you place the KSM141 mic and your room treatments to achieve the best overall sound for each application.Mechanical polar pattern switch for highly consistent cardioid True omnidirectional polar patterns provides flexibility in a wide variety of recording applications Ultrathin, 2.5 micron, 24 karat gold-layered, low-mass Mylar diaphragm for superior transient response Class A, discrete, transformerless preamplifier for transparency, extremely fast transient response, no crossover distortion, and minimal harmonic and intermodulation distortion Premium electronic components, including gold-plated internal and external connectors Subsonic filter eliminates low frequency rumble (less than 17Hz) caused by mechanical vibration Three-position switchable pad (0dB, 15dB, and 25dB) for handling extremely high sound pressure levels (SPLs) Three-position switchable low-frequency filter to reduce background noise and counteract proximity effect Performance Characteristics
The KSM141 features extended frequency response, pad for handling SPLs, a gold-layered Mylar diaphragm and a subsonic filter for low frequency rumble. Both the acoustic environment and microphone placement strongly affect the sound obtained from miking a source. You may need to experiment with where you place the KSM141 mic and your room treatments to achieve the best overall sound for each application.
Features
- Extended frequency response
- Low self-noise
- Exceptional reproduction of low-frequency sounds
- Can withstand high sound pressure levels (SPL)
- High output level
- No crossover distortion
- Uniform polar response
- Superior common mode rejection and suppression of radio frequency interference
- Piano, guitar, drums, percussion, strings and other acoustic instruments
- Brass and woodwind instruments
- Double bass, electric bass, kick drum and other low-frequency instruments
- Overhead miking for drums or percussion
- Choral or orchestral ensembles
- Guitar amplifier or drum room ambience pick-up
- One A141SPC case
- Two A100WS windscreen
- Two A57F microphone clip
- One A27M stereo microphone adapter
- Cartridge type: Permanently biased condenser
- Frequency response: 20 to 20,000Hz
- Directional polar pattern: Cardioid/omnidirectional
- Output impedance: 150? (actual)
- Attenuation switch: 0dB, 15dB, or 25dB attenuation
- Low frequency response switch: Flat; -6db/octave below 115Hz, -18dB/octave below 80Hz
- Phantom power: 48 Vdc ± 4 Vdc (IEC 268 15/DIN 45 596), positive pins 2 and 3
- Current drain: 4.65 mA typical at 48 Vdc
- Common mode rejection: ?50dB, 20Hz to 20kHz
- Polarity: Positive pressure on diaphragm produces positive voltage on output pin 2 relative to pin 3
- Dimensions and weight:
- 20mm (0.8") diameter, 146mm (5.75") long
- 156g (5.5oz.)
- Sensitivity (typical, at 1000Hz; 1 Pa = 94dB SPL): -37dBV/Pa
- Self noise (typical, equivalent SPL; A-weighted, IEC 651): 14dB
- Maximum SPL:
- 5000? load (Attenuator on): 145 (160, 170)dB
- 2500? load (Attenuator on): 139 (154, 164)dB
- 1000? load (Attenuator on): 134 (149, 159)dB
- Output clipping level*:
- 5000? load: 15dBV
- 2500? load: 9dBV
- 1000? load: 3dBV
- *20Hz to 20kHz; THD < 1%. THD of the microphone preamplifier when applied input signal is equivalent to the cartridge output at specified SPL.
- Dynamic range:
- 5000? load: 131dB
- 2500? load: 125dB
- 1000? load: 120dB
- 1000 ohm load: 120dB
- Signal to Noise Ratio**: 80dB
- **S/N ratio is the difference between 94dB SPL and equivalent SPL of self-noise A-weighted
Specs

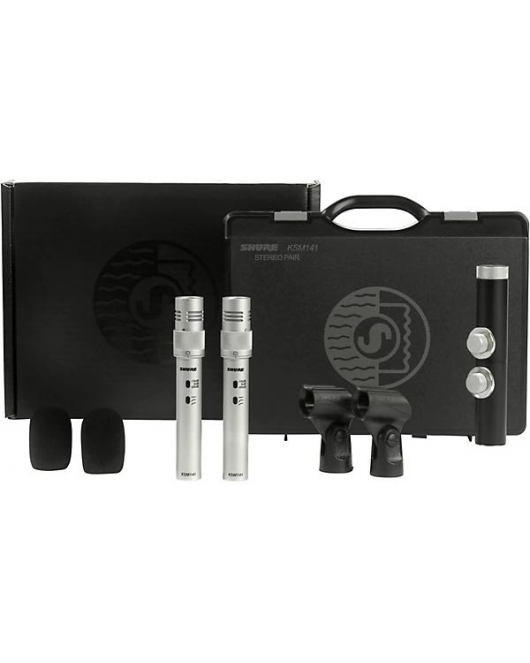

Shure KSM141 Dual Pattern Condenser Mic Champagne
- Product Code: 1279061079406
The KSM141 is a dual-pattern end-addressed condenser microphone with a rotating collar, allowing easy switching between a consistent cardioid or true omnidirectional polar pattern for smooth and extremely focused sound reproduction. Designed for studio use, yet rugged enough for live applications, the KSM141 can withstand extremely high sound pressure levels (SPL). Its low self-noise and extended frequency response make it ideal for recording musical instruments.
The KSM141 features extended frequency response, pad for handling SPLs, a gold-layered Mylar diaphragm and a subsonic filter for low frequency rumble. Both the acoustic environment and microphone placement strongly affect the sound obtained from miking a source. You may need to experiment with where you place the KSM141 mic and your room treatments to achieve the best overall sound for each application.Mechanical polar pattern switch for highly consistent cardioid True omnidirectional polar patterns provides flexibility in a wide variety of recording applications Ultrathin, 2.5 micron, 24 karat gold-layered, low-mass Mylar diaphragm for superior transient response Class A, discrete, transformerless preamplifier for transparency, extremely fast transient response, no crossover distortion, and minimal harmonic and intermodulation distortion Premium electronic components, including gold-plated internal and external connectors Subsonic filter eliminates low frequency rumble (less than 17Hz) caused by mechanical vibration Three-position switchable pad (0dB, 15dB, and 25dB) for handling extremely high sound pressure levels (SPLs) Three-position switchable low-frequency filter to reduce background noise and counteract proximity effect Performance Characteristics
The KSM141 features extended frequency response, pad for handling SPLs, a gold-layered Mylar diaphragm and a subsonic filter for low frequency rumble. Both the acoustic environment and microphone placement strongly affect the sound obtained from miking a source. You may need to experiment with where you place the KSM141 mic and your room treatments to achieve the best overall sound for each application.
Features
- Extended frequency response
- Low self-noise
- Exceptional reproduction of low-frequency sounds
- Can withstand high sound pressure levels (SPL)
- High output level
- No crossover distortion
- Uniform polar response
- Superior common mode rejection and suppression of radio frequency interference
- Piano, guitar, drums, percussion, strings and other acoustic instruments
- Brass and woodwind instruments
- Double bass, electric bass, kick drum and other low-frequency instruments
- Overhead miking for drums or percussion
- Choral or orchestral ensembles
- Guitar amplifier or drum room ambience pick-up
- One A141SPC case
- Two A100WS windscreen
- Two A57F microphone clip
- One A27M stereo microphone adapter
- Cartridge type: Permanently biased condenser
- Frequency response: 20 to 20,000Hz
- Directional polar pattern: Cardioid/omnidirectional
- Output impedance: 150? (actual)
- Attenuation switch: 0dB, 15dB, or 25dB attenuation
- Low frequency response switch: Flat; -6db/octave below 115Hz, -18dB/octave below 80Hz
- Phantom power: 48 Vdc ± 4 Vdc (IEC 268 15/DIN 45 596), positive pins 2 and 3
- Current drain: 4.65 mA typical at 48 Vdc
- Common mode rejection: ?50dB, 20Hz to 20kHz
- Polarity: Positive pressure on diaphragm produces positive voltage on output pin 2 relative to pin 3
- Dimensions and weight:
- 20mm (0.8") diameter, 146mm (5.75") long
- 156g (5.5oz.)
- Sensitivity (typical, at 1000Hz; 1 Pa = 94dB SPL): -37dBV/Pa
- Self noise (typical, equivalent SPL; A-weighted, IEC 651): 14dB
- Maximum SPL:
- 5000? load (Attenuator on): 145 (160, 170)dB
- 2500? load (Attenuator on): 139 (154, 164)dB
- 1000? load (Attenuator on): 134 (149, 159)dB
- Output clipping level*:
- 5000? load: 15dBV
- 2500? load: 9dBV
- 1000? load: 3dBV
- *20Hz to 20kHz; THD < 1%. THD of the microphone preamplifier when applied input signal is equivalent to the cartridge output at specified SPL.
- Dynamic range:
- 5000? load: 131dB
- 2500? load: 125dB
- 1000? load: 120dB
- 1000 ohm load: 120dB
- Signal to Noise Ratio**: 80dB
- **S/N ratio is the difference between 94dB SPL and equivalent SPL of self-noise A-weighted
Specs
- Brand: Shure
- Viewed: 30
- Availability: In Stock
