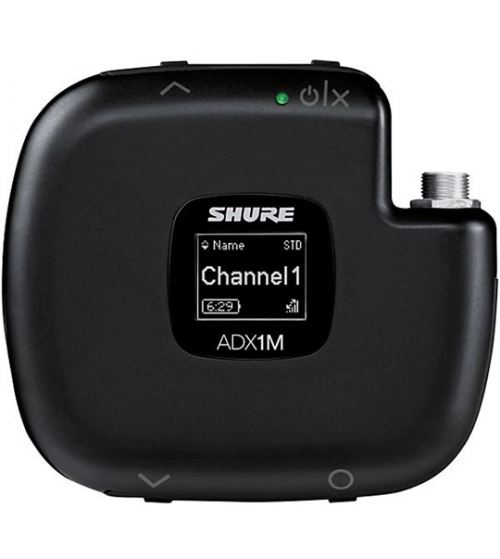

ADX1M delivers impeccable audio quality and RF performance, and is equipped with ShowLink remote control for real-time parameter adjustments and interference avoidance. The contoured form factor and lightweight PEI construction offer both comfort and heat resistance. This transmitter features wide tuning, High Density (HD) mode, encryption, and advanced rechargeability. Sealed switches and LEMO connector protect against moisture, while the OLED display provides excellent visibility in low-light environments. Includes two SB910M rechargeable batteries.

Features

  • Small and streamlined design for better concealment and wear (68mm × 60mm × 18mm)
  • High-contrast OLED display
  • Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
  • Patent-pending internal adaptive antenna for optimized signal when ADX1M is worn against the body
  • UltemPEI construction for heat resistance and durability
  • Recessed LEMO connector
  • Sealed buttons and LEMO connection for protection against sweat and moisture ingress
  • Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
  • Encryption-enabled, secure transmission
  • Up to 7 hours of runtime with SB910M rechargeable battery
  • Detachable belt clip

    • Specs

    RF Carrier Range:
    • 470–960 MHz
    • Note: Varies by region (See Frequency Range and Ouput Power table)
    Working Range:
    • 100 m (330 ft)
    • Note: Actual range depends on RF signal absorption, reflection and interference.
    RF Tuning Step Size:
    • 25 kHz, varies by region
    Image Rejection:

    • >70 dB, typical
    RF Sensitivity:
    • −98 dBm at 10-5 BER
    Latency:
    • Standard mode: 2.0 ms
    • High Density mode: 2.9 ms
    Audio Frequency Response:
    • AD1: 20 Hz – 20 kHz (±1 dB)
    • AD2: 20 Hz – 20 kHz (±1 dB)
    • ADX1: 20 Hz – 20 kHz (±1 dB)
    • ADX1M: 20 Hz – 20 kHz (±1 dB)
    • ADX2/ADX2FD: 20 Hz – 20 kHz (±1 dB)
    • Note: Dependent on microphone type
    Audio Dynamic Range:
    • A-weighted, typical, System Gain @ +10:
    • XLR Analog Output: 120 dB (A-weighted); 117 (unweighted)
    • Dante Digital Output: 130 dB (A-weighted); 126 (unweighted)
    Total Harmonic Distortion:
      −6 dBFS input, 1 kHz, System Gain @ +10
      <0.01%:
      System Audio Polarity:
      • Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output.
      Operating Temperature Range:
      • −18 °C (0 °F) to 50 °C (122 °F)
      • Note: Battery characteristics may limit this range.
      Storage Temperature Range:
      • −29 °C (−20 °F) to 65 °C (149 °F)
      • Note: Battery characteristics may limit this range

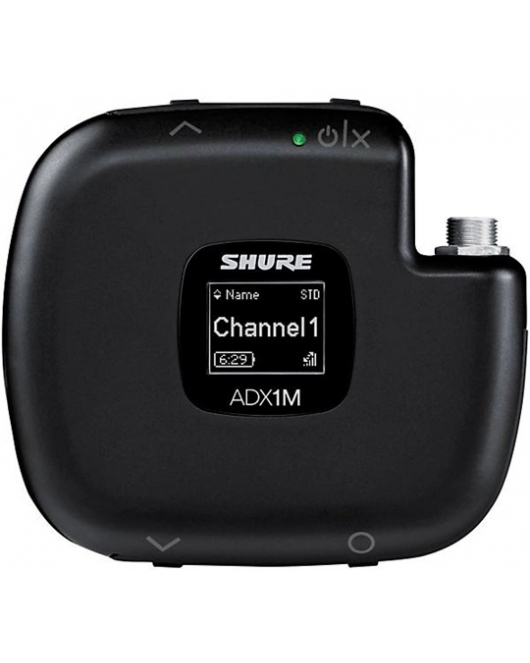

    Shure ADX1M Micro Bodypack Transmitter G57

    • Product Code: 1500000324013
    ADX1M delivers impeccable audio quality and RF performance, and is equipped with ShowLink remote control for real-time parameter adjustments and interference avoidance. The contoured form factor and lightweight PEI construction offer both comfort and heat resistance. This transmitter features wide tuning, High Density (HD) mode, encryption, and advanced rechargeability. Sealed switches and LEMO connector protect against moisture, while the OLED display provides excellent visibility in low-light environments. Includes two SB910M rechargeable batteries.

    Features

    • Small and streamlined design for better concealment and wear (68mm × 60mm × 18mm)
    • High-contrast OLED display
    • Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
    • Patent-pending internal adaptive antenna for optimized signal when ADX1M is worn against the body
    • UltemPEI construction for heat resistance and durability
    • Recessed LEMO connector
    • Sealed buttons and LEMO connection for protection against sweat and moisture ingress
    • Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
    • Encryption-enabled, secure transmission
    • Up to 7 hours of runtime with SB910M rechargeable battery
    • Detachable belt clip

      • Specs

      RF Carrier Range:
      • 470–960 MHz
      • Note: Varies by region (See Frequency Range and Ouput Power table)
      Working Range:
      • 100 m (330 ft)
      • Note: Actual range depends on RF signal absorption, reflection and interference.
      RF Tuning Step Size:
      • 25 kHz, varies by region
      Image Rejection:

      • >70 dB, typical
      RF Sensitivity:
      • −98 dBm at 10-5 BER
      Latency:
      • Standard mode: 2.0 ms
      • High Density mode: 2.9 ms
      Audio Frequency Response:
      • AD1: 20 Hz – 20 kHz (±1 dB)
      • AD2: 20 Hz – 20 kHz (±1 dB)
      • ADX1: 20 Hz – 20 kHz (±1 dB)
      • ADX1M: 20 Hz – 20 kHz (±1 dB)
      • ADX2/ADX2FD: 20 Hz – 20 kHz (±1 dB)
      • Note: Dependent on microphone type
      Audio Dynamic Range:
      • A-weighted, typical, System Gain @ +10:
      • XLR Analog Output: 120 dB (A-weighted); 117 (unweighted)
      • Dante Digital Output: 130 dB (A-weighted); 126 (unweighted)
      Total Harmonic Distortion:
        −6 dBFS input, 1 kHz, System Gain @ +10
        <0.01%:
        System Audio Polarity:
        • Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output.
        Operating Temperature Range:
        • −18 °C (0 °F) to 50 °C (122 °F)
        • Note: Battery characteristics may limit this range.
        Storage Temperature Range:
        • −29 °C (−20 °F) to 65 °C (149 °F)
        • Note: Battery characteristics may limit this range
      • Brand: Shure
      • Viewed: 7
      • Availability: In Stock
      Shure

      $1,468.00
