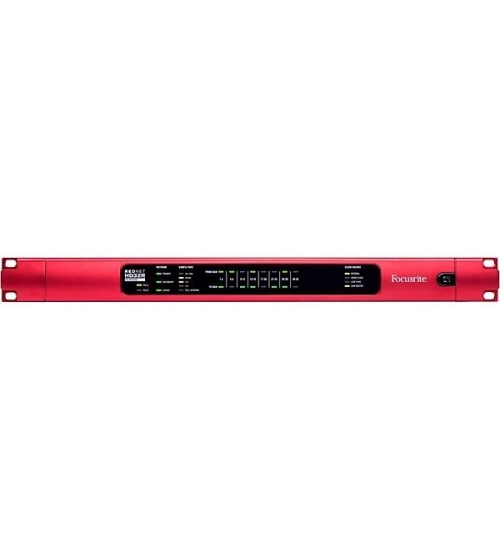

RedNet HD32R is a 1U, 19" rackmount Dante interface that allows Pro Tools|HD users direct access to the full benefits of the Dante digital audio networking system, including its uniquely flexible network topology and premium quality audio interfaces. The Pro Tools system is connected to the HD32R via standard Mini DigiLink ports.
Dual Ethernet ports with locking etherCON connectors are provided, with several operating modes including daisy-chaining and redundancy confirmed by front-panel indicators. Two separate power supplies with fault detection capability are included, with separate power input sockets (with retaining clips) on the rear of the unit. Power state is indicated both remotely and on the front panel. The HD32R features a rugged, roadworthy exterior and high internal build quality. In addition, it offers a compact 1U rack-mount form factor for a full 32 channels of I/O.
HD32R acts as a 64-channel (32-in/32-out) digital break in/out box, operating in the same way as a standard interface, and supporting a wide range of Pro Tools | HDX and HD cards. Supported Pro Tools systems include Pro Tools | HDX, Pro Tools | HD Native, Pro Tools | HD Native Thunderbolt, and Pro Tools|HD TDM. Up to six HD32R modules can be used with a Pro Tools | HDX system and three with Pro Tools | HD, allowing the maximum channel count for either. Simply connect the HD32R to Pro Tools | HD with standard Mini DigiLink connectors.
HD32R allows the use of the low latency performance of Pro Tools | HD cards, bringing the full benefits of Dante audio-over IP networking and the RedNet product range to a Pro Tools|HD system. The entire range of Dante-compatible products including the superb RedNet analog and digital interfaces can then be used with a Pro Tools | HD system, all connected via Ethernet cable.
From complex multi-room systems to single installations Dante and RedNet offer the ability to create a sophisticated and comprehensive high-quality audio production environment around a standard Ethernet network, with HD32R providing the bridge to any Pro Tools|HD system. Assign any available Dante source or destination via HD32R and it appears in Pro Tools exactly as it would with any other Pro Tools-compatible interface, maintaining traditional Pro Tools workflows.
Now comes with Brainworx bx_console Focusrite plug-in
This awesome plug-in recreates the analog signal paths of Focusrite’s revered ISA 110 and ISA 130 modules, which were a part of the Focusrite Studio Console. Designed and coded by the DSP geniuses at acclaimed software house Brainworx, the bx_console Focusrite VST/AU/AAX plug-in for Mac and PC faithfully captures the sound, feel and styling of the original iconic hardware.
If you purchased any Red, RedNet or ISA solution from January 2020 on, you will have the plug-in available in your Focusrite account as long as you’ve registered your product.
Dual Ethernet ports with locking etherCON connectors are provided, with several operating modes including daisy-chaining and redundancy confirmed by front-panel indicators. Two separate power supplies with fault detection capability are included, with separate power input sockets (with retaining clips) on the rear of the unit. Power state is indicated both remotely and on the front panel. The HD32R features a rugged, roadworthy exterior and high internal build quality. In addition, it offers a compact 1U rack-mount form factor for a full 32 channels of I/O.
HD32R acts as a 64-channel (32-in/32-out) digital break in/out box, operating in the same way as a standard interface, and supporting a wide range of Pro Tools | HDX and HD cards. Supported Pro Tools systems include Pro Tools | HDX, Pro Tools | HD Native, Pro Tools | HD Native Thunderbolt, and Pro Tools|HD TDM. Up to six HD32R modules can be used with a Pro Tools | HDX system and three with Pro Tools | HD, allowing the maximum channel count for either. Simply connect the HD32R to Pro Tools | HD with standard Mini DigiLink connectors.
HD32R allows the use of the low latency performance of Pro Tools | HD cards, bringing the full benefits of Dante audio-over IP networking and the RedNet product range to a Pro Tools|HD system. The entire range of Dante-compatible products including the superb RedNet analog and digital interfaces can then be used with a Pro Tools | HD system, all connected via Ethernet cable.
From complex multi-room systems to single installations Dante and RedNet offer the ability to create a sophisticated and comprehensive high-quality audio production environment around a standard Ethernet network, with HD32R providing the bridge to any Pro Tools|HD system. Assign any available Dante source or destination via HD32R and it appears in Pro Tools exactly as it would with any other Pro Tools-compatible interface, maintaining traditional Pro Tools workflows.
Now comes with Brainworx bx_console Focusrite plug-in
This awesome plug-in recreates the analog signal paths of Focusrite’s revered ISA 110 and ISA 130 modules, which were a part of the Focusrite Studio Console. Designed and coded by the DSP geniuses at acclaimed software house Brainworx, the bx_console Focusrite VST/AU/AAX plug-in for Mac and PC faithfully captures the sound, feel and styling of the original iconic hardware.
If you purchased any Red, RedNet or ISA solution from January 2020 on, you will have the plug-in available in your Focusrite account as long as you’ve registered your product.
Features
- Allows Dante Ethernet-based audio networking products to interoperate fully with Pro Tools | HD & Pro Tools | HDX
- Ethernet and power supply redundancy with auto switchover in case of failure and locking connectors
- Provides the vital link to create an extensive high-quality audio network based on standard Cat 5e or Cat 6 wiring, bringing the latest advances in digital audio networking to Pro Tools | HD
- Cost-effectively increase audio I/O quality and flexibility with RedNet interfaces
- Permits multiple workstations to access the same interface hardware and I/O
- No changes to Pro Tools workflow required – simple, logical assignment of RedNet I/O to Pro Tools | HD inputs and outputs
- Up to 32 I/O with Pro Tools | HD over single DigiLink connection per RedNet HD32R
- Additional Avid/Digidesign interfaces may be connected to expansion ports
- Upgrade to RedNet interfaces while remaining fully compatible with TDM- or AAX-DSP-based plug-ins and saved sessions
- Focusrite offers a 2-year manufacturer's warranty
Focusrite RedNet HD32R 32-Channel Bridge Device
- Product Code: 1500000024833
RedNet HD32R is a 1U, 19" rackmount Dante interface that allows Pro Tools|HD users direct access to the full benefits of the Dante digital audio networking system, including its uniquely flexible network topology and premium quality audio interfaces. The Pro Tools system is connected to the HD32R via standard Mini DigiLink ports.
Dual Ethernet ports with locking etherCON connectors are provided, with several operating modes including daisy-chaining and redundancy confirmed by front-panel indicators. Two separate power supplies with fault detection capability are included, with separate power input sockets (with retaining clips) on the rear of the unit. Power state is indicated both remotely and on the front panel. The HD32R features a rugged, roadworthy exterior and high internal build quality. In addition, it offers a compact 1U rack-mount form factor for a full 32 channels of I/O.
HD32R acts as a 64-channel (32-in/32-out) digital break in/out box, operating in the same way as a standard interface, and supporting a wide range of Pro Tools | HDX and HD cards. Supported Pro Tools systems include Pro Tools | HDX, Pro Tools | HD Native, Pro Tools | HD Native Thunderbolt, and Pro Tools|HD TDM. Up to six HD32R modules can be used with a Pro Tools | HDX system and three with Pro Tools | HD, allowing the maximum channel count for either. Simply connect the HD32R to Pro Tools | HD with standard Mini DigiLink connectors.
HD32R allows the use of the low latency performance of Pro Tools | HD cards, bringing the full benefits of Dante audio-over IP networking and the RedNet product range to a Pro Tools|HD system. The entire range of Dante-compatible products including the superb RedNet analog and digital interfaces can then be used with a Pro Tools | HD system, all connected via Ethernet cable.
From complex multi-room systems to single installations Dante and RedNet offer the ability to create a sophisticated and comprehensive high-quality audio production environment around a standard Ethernet network, with HD32R providing the bridge to any Pro Tools|HD system. Assign any available Dante source or destination via HD32R and it appears in Pro Tools exactly as it would with any other Pro Tools-compatible interface, maintaining traditional Pro Tools workflows.
Now comes with Brainworx bx_console Focusrite plug-in
This awesome plug-in recreates the analog signal paths of Focusrite’s revered ISA 110 and ISA 130 modules, which were a part of the Focusrite Studio Console. Designed and coded by the DSP geniuses at acclaimed software house Brainworx, the bx_console Focusrite VST/AU/AAX plug-in for Mac and PC faithfully captures the sound, feel and styling of the original iconic hardware.
If you purchased any Red, RedNet or ISA solution from January 2020 on, you will have the plug-in available in your Focusrite account as long as you’ve registered your product.
Dual Ethernet ports with locking etherCON connectors are provided, with several operating modes including daisy-chaining and redundancy confirmed by front-panel indicators. Two separate power supplies with fault detection capability are included, with separate power input sockets (with retaining clips) on the rear of the unit. Power state is indicated both remotely and on the front panel. The HD32R features a rugged, roadworthy exterior and high internal build quality. In addition, it offers a compact 1U rack-mount form factor for a full 32 channels of I/O.
HD32R acts as a 64-channel (32-in/32-out) digital break in/out box, operating in the same way as a standard interface, and supporting a wide range of Pro Tools | HDX and HD cards. Supported Pro Tools systems include Pro Tools | HDX, Pro Tools | HD Native, Pro Tools | HD Native Thunderbolt, and Pro Tools|HD TDM. Up to six HD32R modules can be used with a Pro Tools | HDX system and three with Pro Tools | HD, allowing the maximum channel count for either. Simply connect the HD32R to Pro Tools | HD with standard Mini DigiLink connectors.
HD32R allows the use of the low latency performance of Pro Tools | HD cards, bringing the full benefits of Dante audio-over IP networking and the RedNet product range to a Pro Tools|HD system. The entire range of Dante-compatible products including the superb RedNet analog and digital interfaces can then be used with a Pro Tools | HD system, all connected via Ethernet cable.
From complex multi-room systems to single installations Dante and RedNet offer the ability to create a sophisticated and comprehensive high-quality audio production environment around a standard Ethernet network, with HD32R providing the bridge to any Pro Tools|HD system. Assign any available Dante source or destination via HD32R and it appears in Pro Tools exactly as it would with any other Pro Tools-compatible interface, maintaining traditional Pro Tools workflows.
Now comes with Brainworx bx_console Focusrite plug-in
This awesome plug-in recreates the analog signal paths of Focusrite’s revered ISA 110 and ISA 130 modules, which were a part of the Focusrite Studio Console. Designed and coded by the DSP geniuses at acclaimed software house Brainworx, the bx_console Focusrite VST/AU/AAX plug-in for Mac and PC faithfully captures the sound, feel and styling of the original iconic hardware.
If you purchased any Red, RedNet or ISA solution from January 2020 on, you will have the plug-in available in your Focusrite account as long as you’ve registered your product.
Features
- Allows Dante Ethernet-based audio networking products to interoperate fully with Pro Tools | HD & Pro Tools | HDX
- Ethernet and power supply redundancy with auto switchover in case of failure and locking connectors
- Provides the vital link to create an extensive high-quality audio network based on standard Cat 5e or Cat 6 wiring, bringing the latest advances in digital audio networking to Pro Tools | HD
- Cost-effectively increase audio I/O quality and flexibility with RedNet interfaces
- Permits multiple workstations to access the same interface hardware and I/O
- No changes to Pro Tools workflow required – simple, logical assignment of RedNet I/O to Pro Tools | HD inputs and outputs
- Up to 32 I/O with Pro Tools | HD over single DigiLink connection per RedNet HD32R
- Additional Avid/Digidesign interfaces may be connected to expansion ports
- Upgrade to RedNet interfaces while remaining fully compatible with TDM- or AAX-DSP-based plug-ins and saved sessions
- Focusrite offers a 2-year manufacturer's warranty
