K-Mix is an all-in-one audio interface, control surface and programmable mixer that is a great space and time saver in either live or studio environments. On the input side, it features two low-noise preamps accessible through a pair of XLR/TRS combo jacks that supply 48V phantom power if needed. It additionally features six TRS line inputs for a total of eight balanced inputs.
Audio and MIDI in and out can be managed via mini and micro USB. Outputs include stereo headphone output along with eight balanced ¼ in. TRS jacks (outputs 1 and 2 function in default as master stereo output left and right).
One aspect that really sets the K-Mix apart are its multi-function, touch-sensitive strip faders and rotary controllers. They are satisfying to use and provide detailed input power once you become accustomed to using them. They are a true joy to work with. Onboard DSP includes Compresser/Limiter, Gate, Pan, EQ and reflections emulation. It supports surround mixing for 5.1, 7.1 and Octo playback.
Audio and MIDI in and out can be managed via mini and micro USB. Outputs include stereo headphone output along with eight balanced ¼ in. TRS jacks (outputs 1 and 2 function in default as master stereo output left and right).
One aspect that really sets the K-Mix apart are its multi-function, touch-sensitive strip faders and rotary controllers. They are satisfying to use and provide detailed input power once you become accustomed to using them. They are a true joy to work with. Onboard DSP includes Compresser/Limiter, Gate, Pan, EQ and reflections emulation. It supports surround mixing for 5.1, 7.1 and Octo playback.
Features
- Inputs: 8 Balanced Inputs, Signals up to +28dBu
- Outputs: 10 Outputs (8 balanced)
- Bit depth: 24-bit AKM Converters, 110dB dynamic range
- Sample rate: 44.1kHz,48kHz,88.2kHz,96kHz
- Internal latency: ~2.5ms
- Analog inputs: 2XLR/TRS combo jacks, 6 1/4” TRS Connectors (line/phono,balanced)
- Analog outputs: 8 1/4” TRS, 3.5mm TRS headphone output
- Digital: Micro-USB (Audio I/O, MIDI I/O, Power), Mini-USB (Power, Expander MIDI)
- Faders: 8 channel faders, 1 master faders
- Rotaries: 4 rotary controls (360°)
- Buttons:9 Channel Select, 4 Bank Select, 17 Function

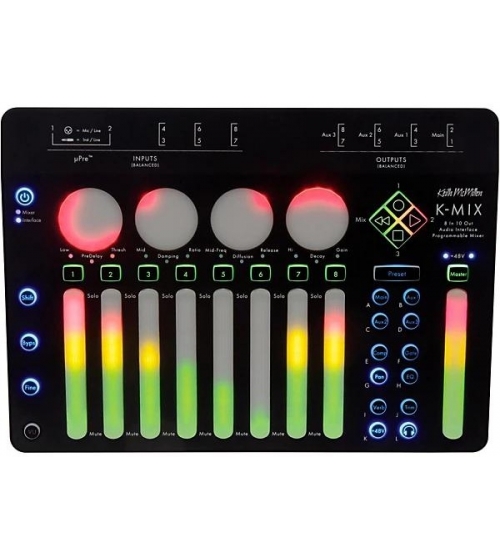

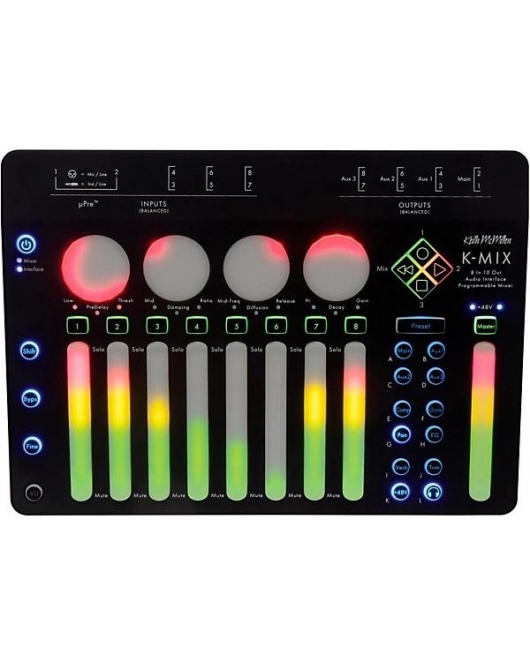

Keith McMillen K Mix Audio Interface And Digital Mixer
- Product Code: 1500000022674
K-Mix is an all-in-one audio interface, control surface and programmable mixer that is a great space and time saver in either live or studio environments. On the input side, it features two low-noise preamps accessible through a pair of XLR/TRS combo jacks that supply 48V phantom power if needed. It additionally features six TRS line inputs for a total of eight balanced inputs.
Audio and MIDI in and out can be managed via mini and micro USB. Outputs include stereo headphone output along with eight balanced ¼ in. TRS jacks (outputs 1 and 2 function in default as master stereo output left and right).
One aspect that really sets the K-Mix apart are its multi-function, touch-sensitive strip faders and rotary controllers. They are satisfying to use and provide detailed input power once you become accustomed to using them. They are a true joy to work with. Onboard DSP includes Compresser/Limiter, Gate, Pan, EQ and reflections emulation. It supports surround mixing for 5.1, 7.1 and Octo playback.
Audio and MIDI in and out can be managed via mini and micro USB. Outputs include stereo headphone output along with eight balanced ¼ in. TRS jacks (outputs 1 and 2 function in default as master stereo output left and right).
One aspect that really sets the K-Mix apart are its multi-function, touch-sensitive strip faders and rotary controllers. They are satisfying to use and provide detailed input power once you become accustomed to using them. They are a true joy to work with. Onboard DSP includes Compresser/Limiter, Gate, Pan, EQ and reflections emulation. It supports surround mixing for 5.1, 7.1 and Octo playback.
Features
- Inputs: 8 Balanced Inputs, Signals up to +28dBu
- Outputs: 10 Outputs (8 balanced)
- Bit depth: 24-bit AKM Converters, 110dB dynamic range
- Sample rate: 44.1kHz,48kHz,88.2kHz,96kHz
- Internal latency: ~2.5ms
- Analog inputs: 2XLR/TRS combo jacks, 6 1/4” TRS Connectors (line/phono,balanced)
- Analog outputs: 8 1/4” TRS, 3.5mm TRS headphone output
- Digital: Micro-USB (Audio I/O, MIDI I/O, Power), Mini-USB (Power, Expander MIDI)
- Faders: 8 channel faders, 1 master faders
- Rotaries: 4 rotary controls (360°)
- Buttons:9 Channel Select, 4 Bank Select, 17 Function
- Brand: Keith McMillen
- Viewed: 7
- Availability: In Stock
