Ui24R is a complete mixing system for mobile playing engagements, venues and even project studios, and its live recording features open up a new world of utility for performers whose best work happens in the moment. It features dual-path, multi-track recording of all 22 inputs along with your stereo mix, directly to a USB storage drive AND a connected computer. The multi-channel USB audio interface also makes it easy to integrate the Ui24R into your recording studio for production work with your favorite DAW. Record your live mix, and a multitrack capture that you can mix and add effects and EQ to at a later time.
Less Surface, More Freedom
Traditional mixers offer lots of functionality, but can only be controlled from the mix console position. The Ui24R surface-less mixer combines the power and versatility of a large-format console with a compact design and complete Wi-Fi control. With Ui24R, you can finally have the features you need, plus the freedom to control your mixer from anywhere in the venue.More Ways to Connect
When you need a mixer with comprehensive connections and a compact footprint, Ui24R provides the perfect, streamlined solution. The Ui24R allows you to mix from multiple sources including 10 combo 1/4"-TRS/XLR, 10 XLR, two line level inputs and two channels of digital USB playback for a total of 24 channels. With its flexible and high-quality I/O, Ui24R gives venues, bands and engineers room to grow, with expanded creative options.More Ways to Control
Control Ui24R from the device of your choice (tablet, phone, PC, Mac) via iOS, Android, Windows, Mac OS and Linux browsers, without installing apps. Onboard dual-band Wi-Fi ensures you (and up to nine members of the band) can always stay in control without relying on an independent router or the venue’s Wi-Fi. Musicians can adjust their individual mix on stage while the FOH engineer optimizes the audience experience.Multi-track Recording and Playback
Ui24R is more than just a complete mixing system—it’s also a top-notch recording tool. Enjoy peace of mind with dual-path, multi-track recording of all 22 inputs and your stereo mix, directly to a USB storage drive and a connected computer. The multi-channel USB audio interface also makes it easy to integrate the Ui24R into your recording studio for production work with your favorite DAW.Compatible With HARMAN Connected PA
The Ui24R mixer’s embedded ioSYS technology enables easier setup and control when used with the HARMAN Connected PA app and compatible products. Connected PA delivers seamless plug-and-play operation with a variety of HARMAN equipment and enables you to control your entire live sound system with one app. Products within the Connected PA ecosystem self-identify and retain presets for effortless setup, and setup wizards help you quickly optimize volume, configuration settings and sound quality (current products with embedded ioSYS technology and HARMAN Connected PA compatibility include JBL PRX800W loudspeakers, dbx DI1 direct boxes and AKG P5i microphones).Features
Format
- Analog/digital: Digital
- Number of channels: 20
- Busses/groups: 8
- Aux sends: 8
- Powered: No
- Total inputs: 22
- Mic preamps: 20
- XLR/TRS combo jacks: 10
- XLR only jacks: 10
- 1/4" only jacks: 0
- Word Clock No
- RCA in: Yes
- Ethernet: Yes
- Total main outputs: 2 XLR
- RCA: No
- 1/4” main outs: 2
- USB: 2TK, Multi-track
- MIDI I/O: Via Wi-Fi
- Headphone output(s): 2
- LAN: Yes
- App: Included (full control)
- USB Yes
- Compression: Yes
- Reverb: Yes
- Delay: Yes
- Chorus/flange: Yes
- Type: PEQ per channel
- EQ bands: 4
- Master graphic: 31 band
- Width: 22"
- Height: 10"
- Depth: 2.4"
- Weight: 31 lb.
- Automation: Yes
- Fader type: Virtual
- Motorized faders: N/A
- Bundled software: Yes
- Rackmountable: Yes

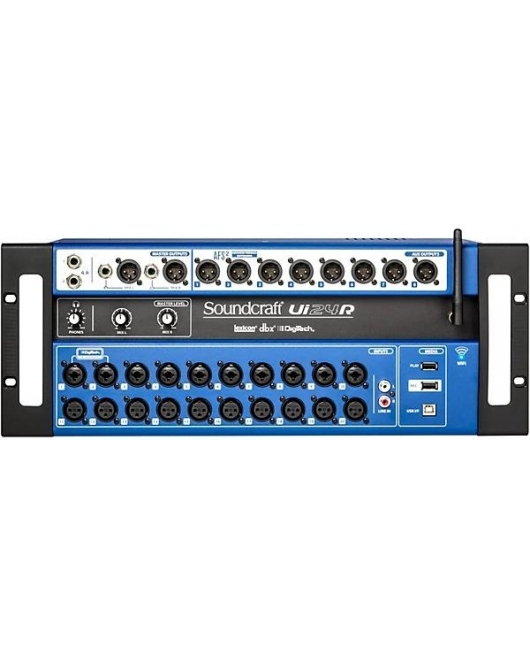

Soundcraft Ui24R Digital Mixer 24 Channel
- Product Code: 1500000037127
Ui24R is a complete mixing system for mobile playing engagements, venues and even project studios, and its live recording features open up a new world of utility for performers whose best work happens in the moment. It features dual-path, multi-track recording of all 22 inputs along with your stereo mix, directly to a USB storage drive AND a connected computer. The multi-channel USB audio interface also makes it easy to integrate the Ui24R into your recording studio for production work with your favorite DAW. Record your live mix, and a multitrack capture that you can mix and add effects and EQ to at a later time.
Less Surface, More Freedom
Traditional mixers offer lots of functionality, but can only be controlled from the mix console position. The Ui24R surface-less mixer combines the power and versatility of a large-format console with a compact design and complete Wi-Fi control. With Ui24R, you can finally have the features you need, plus the freedom to control your mixer from anywhere in the venue.More Ways to Connect
When you need a mixer with comprehensive connections and a compact footprint, Ui24R provides the perfect, streamlined solution. The Ui24R allows you to mix from multiple sources including 10 combo 1/4"-TRS/XLR, 10 XLR, two line level inputs and two channels of digital USB playback for a total of 24 channels. With its flexible and high-quality I/O, Ui24R gives venues, bands and engineers room to grow, with expanded creative options.More Ways to Control
Control Ui24R from the device of your choice (tablet, phone, PC, Mac) via iOS, Android, Windows, Mac OS and Linux browsers, without installing apps. Onboard dual-band Wi-Fi ensures you (and up to nine members of the band) can always stay in control without relying on an independent router or the venue’s Wi-Fi. Musicians can adjust their individual mix on stage while the FOH engineer optimizes the audience experience.Multi-track Recording and Playback
Ui24R is more than just a complete mixing system—it’s also a top-notch recording tool. Enjoy peace of mind with dual-path, multi-track recording of all 22 inputs and your stereo mix, directly to a USB storage drive and a connected computer. The multi-channel USB audio interface also makes it easy to integrate the Ui24R into your recording studio for production work with your favorite DAW.Compatible With HARMAN Connected PA
The Ui24R mixer’s embedded ioSYS technology enables easier setup and control when used with the HARMAN Connected PA app and compatible products. Connected PA delivers seamless plug-and-play operation with a variety of HARMAN equipment and enables you to control your entire live sound system with one app. Products within the Connected PA ecosystem self-identify and retain presets for effortless setup, and setup wizards help you quickly optimize volume, configuration settings and sound quality (current products with embedded ioSYS technology and HARMAN Connected PA compatibility include JBL PRX800W loudspeakers, dbx DI1 direct boxes and AKG P5i microphones).Features
Format
- Analog/digital: Digital
- Number of channels: 20
- Busses/groups: 8
- Aux sends: 8
- Powered: No
- Total inputs: 22
- Mic preamps: 20
- XLR/TRS combo jacks: 10
- XLR only jacks: 10
- 1/4" only jacks: 0
- Word Clock No
- RCA in: Yes
- Ethernet: Yes
- Total main outputs: 2 XLR
- RCA: No
- 1/4” main outs: 2
- USB: 2TK, Multi-track
- MIDI I/O: Via Wi-Fi
- Headphone output(s): 2
- LAN: Yes
- App: Included (full control)
- USB Yes
- Compression: Yes
- Reverb: Yes
- Delay: Yes
- Chorus/flange: Yes
- Type: PEQ per channel
- EQ bands: 4
- Master graphic: 31 band
- Width: 22"
- Height: 10"
- Depth: 2.4"
- Weight: 31 lb.
- Automation: Yes
- Fader type: Virtual
- Motorized faders: N/A
- Bundled software: Yes
- Rackmountable: Yes
- Brand: Soundcraft
- Viewed: 14
- Availability: In Stock
