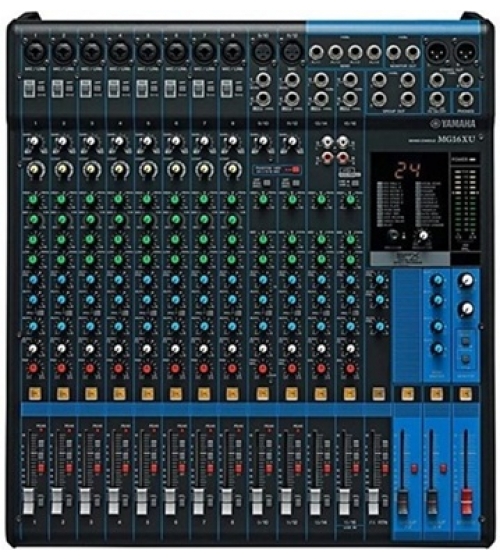

This premium yet affordable analog mixer is suited for both portable and installed setups, delivering rich features and top-of-the-line sound quality. Its high-quality op-amp ensures a transparent, articulate mix. The MG16XU's crystal-clear D-PRE preamps maximize the potential of any mic, capturing natural bass and smooth highs. With built-in digital effects, switchable phantom power, pad switch, one-knob compressors, EQ, abundant I/O, and LED metering, the MG16XU can handle virtually any task.
Revolutionary SPX Effects
For precise control and enhancement of your sound, the MG16XU provides Yamaha's renowned SPX effects, including high-resolution Chorus, Flanger, Distortion, Reverb, and Delay. Using the same multieffects processors as Yamaha's professional mixing consoles, these effects elevate your mixes to new heights.
Pure, Transparent Sound
Yamaha has always strived to provide the purest possible signal instead of added color. Embracing this philosophy of transparent sound, the MG16XU delivers unparalleled sonic purity and sound quality in its class.
Rugged, Reliable Design
Now in its third generation, the MG Series embodies the pursuit of design excellence and incorporates technologies from Yamaha's high-end consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable build. The MG16XU, the 16-channel version, has eight mono XLR and 1/4" hybrid inputs, two mono/stereo [MIC/LINE] inputs, and two stereo line inputs.
Intuitive Interface, Solid Construction
With an intuitive interface and solid construction suitable for diverse users and applications, the MG16XU lets you shape your sound with confidence. Continually delivering peak performance and sound quality, the MG16XU is a leader in its class.
Features
- Outstanding microphone preamps
- Switchable Phantom Power & PAD Switch
- 1-knob Compressors
- EQ and High-pass Filters
- AUX / Effect Sends / Group
- LED level metering
- Built-in SPX Digital Effects
- Metal Chassis
- USB
- On-board processors : SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)
- Phantom power: +48 V
- Digital I/O: USB Audio Class 2.0 compliant, Max 192 kHz, 24-bit
- Input Channels: 8 Mono[MIC/LINE], 2 Mono/Stereo[MIC/LINE], stereo[LINE]: 2
- Output Channels: STEREO OUT: 2
- MONITOR OUT: 1
- PHONES: 1
- AUX SEND: 4
- GROUP OUT: 4
- Bus: Stereo: 1, GROUP, AUX: 4
- Input Channel Function
- PAD: 26 dB (Mono)
- HPF: 80 Hz, 12 dB/oct (Mono)
- COMP: 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
- EQ HIGH: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
- EQ MID: Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
- EQ LOW: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
- PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping
- Level Meter: 2 x 12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
Specs

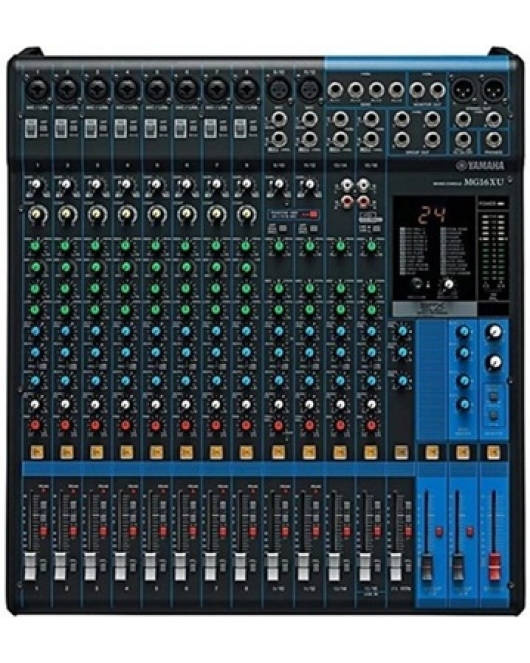

Yamaha MG16XU 16 Channel Mixer Console
- Product Code: 1391442168069
This premium yet affordable analog mixer is suited for both portable and installed setups, delivering rich features and top-of-the-line sound quality. Its high-quality op-amp ensures a transparent, articulate mix. The MG16XU's crystal-clear D-PRE preamps maximize the potential of any mic, capturing natural bass and smooth highs. With built-in digital effects, switchable phantom power, pad switch, one-knob compressors, EQ, abundant I/O, and LED metering, the MG16XU can handle virtually any task.
Revolutionary SPX Effects
For precise control and enhancement of your sound, the MG16XU provides Yamaha's renowned SPX effects, including high-resolution Chorus, Flanger, Distortion, Reverb, and Delay. Using the same multieffects processors as Yamaha's professional mixing consoles, these effects elevate your mixes to new heights.
Pure, Transparent Sound
Yamaha has always strived to provide the purest possible signal instead of added color. Embracing this philosophy of transparent sound, the MG16XU delivers unparalleled sonic purity and sound quality in its class.
Rugged, Reliable Design
Now in its third generation, the MG Series embodies the pursuit of design excellence and incorporates technologies from Yamaha's high-end consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable build. The MG16XU, the 16-channel version, has eight mono XLR and 1/4" hybrid inputs, two mono/stereo [MIC/LINE] inputs, and two stereo line inputs.
Intuitive Interface, Solid Construction
With an intuitive interface and solid construction suitable for diverse users and applications, the MG16XU lets you shape your sound with confidence. Continually delivering peak performance and sound quality, the MG16XU is a leader in its class.
Features
- Outstanding microphone preamps
- Switchable Phantom Power & PAD Switch
- 1-knob Compressors
- EQ and High-pass Filters
- AUX / Effect Sends / Group
- LED level metering
- Built-in SPX Digital Effects
- Metal Chassis
- USB
- On-board processors : SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)
- Phantom power: +48 V
- Digital I/O: USB Audio Class 2.0 compliant, Max 192 kHz, 24-bit
- Input Channels: 8 Mono[MIC/LINE], 2 Mono/Stereo[MIC/LINE], stereo[LINE]: 2
- Output Channels: STEREO OUT: 2
- MONITOR OUT: 1
- PHONES: 1
- AUX SEND: 4
- GROUP OUT: 4
- Bus: Stereo: 1, GROUP, AUX: 4
- Input Channel Function
- PAD: 26 dB (Mono)
- HPF: 80 Hz, 12 dB/oct (Mono)
- COMP: 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
- EQ HIGH: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
- EQ MID: Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
- EQ LOW: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
- PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping
- Level Meter: 2 x 12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
