The engineering of this particular piece of cutting-edge audio technology asked for a forward-thinking approach toward capsule and circuit design. As a result, a way of experiencing sound at infinite depth and absolute precision came to life; its name, the Lewitt LCT 540 S. Get involved with tone and sound in ways unheard and bring your recordings to perfection by capturing all the fine-grained characteristics that constitute each moment of your performance. Rediscover your instrument and voice on a whole new level of musical detail.
Lewitt's unique approach toward electronics and capsule design makes the microphone better than human hearing. With the LCT 540 S, a new benchmark was set in terms of capturing fine-grained details of your recording source. It allows you to record details of your voice and instruments that usually wouldn’t even be audible. Makes every detail count.
With its cutting-edge circuit and capsule design, the LCT 540 S features an impressive dynamic range of 132dB to capture everything from loud to subtle. You won’t hear the self-noise of the mic even after heavily compressing the signal. Material recorded with the LCT 540 S is fit for extreme processing.
The human hearing threshold is very frequency-dependent. It is less sensitive toward low and very high frequencies, and most sensitive around 2–5kHz. With Lewitt's specific and unique approach toward circuit and capsule design, they were able to realize self-noise that'll stay below the threshold of hearing across the entire frequency spectrum.
To measure the self-noise of the LCT 540 S, Lewitt built a unique device. It's ten times more massive than conventional ones, weighing over 9,900 lb. in total. This amount of mass will dampen frequencies up to a 1/10,000th of their sound pressure. The frequency range from 20Hz to 20kHz is dampened by 60dB, up to 80dB on the higher frequencies.
Perfect Match Technology
Every single LCT 540 S undergoes a series of measurements followed by adjustment of the polarization voltage to achieve the same sensitivity in every LCT 540 S ever produced. This way, you can form a pair when you buy another one later on.
Lewitt's unique approach toward electronics and capsule design makes the microphone better than human hearing. With the LCT 540 S, a new benchmark was set in terms of capturing fine-grained details of your recording source. It allows you to record details of your voice and instruments that usually wouldn’t even be audible. Makes every detail count.
With its cutting-edge circuit and capsule design, the LCT 540 S features an impressive dynamic range of 132dB to capture everything from loud to subtle. You won’t hear the self-noise of the mic even after heavily compressing the signal. Material recorded with the LCT 540 S is fit for extreme processing.
The human hearing threshold is very frequency-dependent. It is less sensitive toward low and very high frequencies, and most sensitive around 2–5kHz. With Lewitt's specific and unique approach toward circuit and capsule design, they were able to realize self-noise that'll stay below the threshold of hearing across the entire frequency spectrum.
To measure the self-noise of the LCT 540 S, Lewitt built a unique device. It's ten times more massive than conventional ones, weighing over 9,900 lb. in total. This amount of mass will dampen frequencies up to a 1/10,000th of their sound pressure. The frequency range from 20Hz to 20kHz is dampened by 60dB, up to 80dB on the higher frequencies.
Perfect Match Technology
Every single LCT 540 S undergoes a series of measurements followed by adjustment of the polarization voltage to achieve the same sensitivity in every LCT 540 S ever produced. This way, you can form a pair when you buy another one later on. Features
- Developed in close cooperation with world-renowned producers and audio engineers
- First and foremost designed to be an outstanding vocal microphone
- 1" true condenser studio microphone
- Self-noise below the threshold of human hearing
- Ideal for extreme processing
- Low-cut filters and attenuation
- Cardioid polar pattern
- Condenser, externally polarized
- Pressure-gradient transducer, externally polarized
- 1"
- 3 micron gold-sputtered Mylar
- Cardioid
- 20Hz–20kHz
- 41 mV/Pa, –28dBV/Pa
- 4dB (A)
- 136dB SPL, 0dB attenuation
- 90dB (A)
- 132dB (A)
- 0dB
- –6dB
- –12dB
- Linear
- 80Hz (6dB/oct)
- 160Hz (6dB/oct)
- 68 ohm
- 48V ± 4V
- 3.6 mA
- Zinc die-cast
- Gold-plated 3-pin XLR
- 6.22" x 2.04" x 1.42"
- 13.1 oz.
Specs
Type

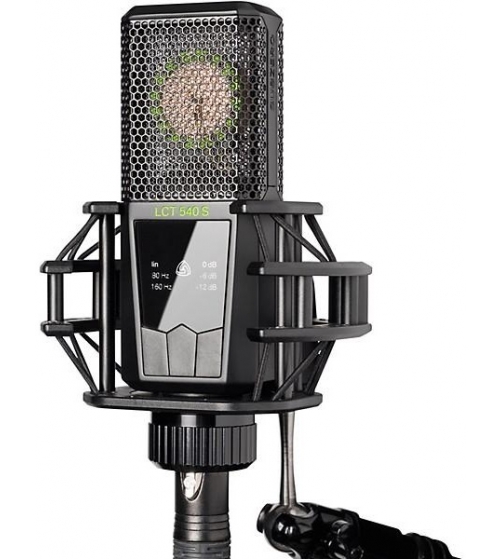

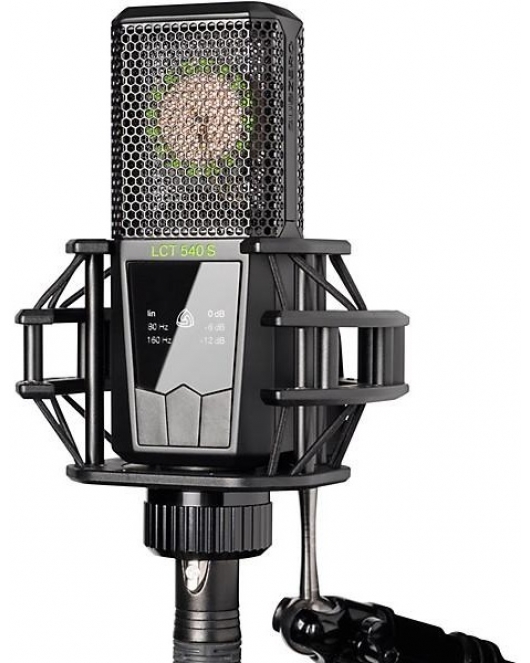

LEWITT LCT 540 S Large-Diaphragm Condenser Microphone
- Product Code: 1500000189770
The engineering of this particular piece of cutting-edge audio technology asked for a forward-thinking approach toward capsule and circuit design. As a result, a way of experiencing sound at infinite depth and absolute precision came to life; its name, the Lewitt LCT 540 S. Get involved with tone and sound in ways unheard and bring your recordings to perfection by capturing all the fine-grained characteristics that constitute each moment of your performance. Rediscover your instrument and voice on a whole new level of musical detail.
Lewitt's unique approach toward electronics and capsule design makes the microphone better than human hearing. With the LCT 540 S, a new benchmark was set in terms of capturing fine-grained details of your recording source. It allows you to record details of your voice and instruments that usually wouldn’t even be audible. Makes every detail count.
With its cutting-edge circuit and capsule design, the LCT 540 S features an impressive dynamic range of 132dB to capture everything from loud to subtle. You won’t hear the self-noise of the mic even after heavily compressing the signal. Material recorded with the LCT 540 S is fit for extreme processing.
The human hearing threshold is very frequency-dependent. It is less sensitive toward low and very high frequencies, and most sensitive around 2–5kHz. With Lewitt's specific and unique approach toward circuit and capsule design, they were able to realize self-noise that'll stay below the threshold of hearing across the entire frequency spectrum.
To measure the self-noise of the LCT 540 S, Lewitt built a unique device. It's ten times more massive than conventional ones, weighing over 9,900 lb. in total. This amount of mass will dampen frequencies up to a 1/10,000th of their sound pressure. The frequency range from 20Hz to 20kHz is dampened by 60dB, up to 80dB on the higher frequencies.
Perfect Match Technology
Every single LCT 540 S undergoes a series of measurements followed by adjustment of the polarization voltage to achieve the same sensitivity in every LCT 540 S ever produced. This way, you can form a pair when you buy another one later on.
Lewitt's unique approach toward electronics and capsule design makes the microphone better than human hearing. With the LCT 540 S, a new benchmark was set in terms of capturing fine-grained details of your recording source. It allows you to record details of your voice and instruments that usually wouldn’t even be audible. Makes every detail count.
With its cutting-edge circuit and capsule design, the LCT 540 S features an impressive dynamic range of 132dB to capture everything from loud to subtle. You won’t hear the self-noise of the mic even after heavily compressing the signal. Material recorded with the LCT 540 S is fit for extreme processing.
The human hearing threshold is very frequency-dependent. It is less sensitive toward low and very high frequencies, and most sensitive around 2–5kHz. With Lewitt's specific and unique approach toward circuit and capsule design, they were able to realize self-noise that'll stay below the threshold of hearing across the entire frequency spectrum.
To measure the self-noise of the LCT 540 S, Lewitt built a unique device. It's ten times more massive than conventional ones, weighing over 9,900 lb. in total. This amount of mass will dampen frequencies up to a 1/10,000th of their sound pressure. The frequency range from 20Hz to 20kHz is dampened by 60dB, up to 80dB on the higher frequencies.
Perfect Match Technology
Every single LCT 540 S undergoes a series of measurements followed by adjustment of the polarization voltage to achieve the same sensitivity in every LCT 540 S ever produced. This way, you can form a pair when you buy another one later on. Features
- Developed in close cooperation with world-renowned producers and audio engineers
- First and foremost designed to be an outstanding vocal microphone
- 1" true condenser studio microphone
- Self-noise below the threshold of human hearing
- Ideal for extreme processing
- Low-cut filters and attenuation
- Cardioid polar pattern
- Condenser, externally polarized
- Pressure-gradient transducer, externally polarized
- 1"
- 3 micron gold-sputtered Mylar
- Cardioid
- 20Hz–20kHz
- 41 mV/Pa, –28dBV/Pa
- 4dB (A)
- 136dB SPL, 0dB attenuation
- 90dB (A)
- 132dB (A)
- 0dB
- –6dB
- –12dB
- Linear
- 80Hz (6dB/oct)
- 160Hz (6dB/oct)
- 68 ohm
- 48V ± 4V
- 3.6 mA
- Zinc die-cast
- Gold-plated 3-pin XLR
- 6.22" x 2.04" x 1.42"
- 13.1 oz.
Specs
Type
- Brand: LEWITT
- Viewed: 15
- Availability: In Stock
