With DPA Microphones’ tiniest preamplifier design, the DPA Microphones 4017E Shotgun Microphone features an integrated cable solution with rear cable entry. It’s one of the shortest professional interference tube shotgun mics available today; only 4.9" in length and 4.3 oz in weight, including 9.8 ft cable and connector. It’s ideal for booming actors or capturing distant voice dialogue for broadcast and video situations.

The mic is immune to RF emission and the 0.75" condenser cartridge is capable of handling peak SPLs of 152 dB before clipping. The SM4000 Suspension Mount is included in the package. This allows the mic to be hung from the ceiling to create precision spot-miking of orchestra sections or ambience atmosphere.

Features

  • Small and lightweight
  • Excellent RF immunity
  • Highly immune to humidity
  • Uniform off-axis response
  • Highly directional pattern
  • Sleek shotgun for distant miking
  • Integrated active cable

    • Specs

    • Directional pattern: Supercardioid, lobe-shaped
    • Principle of operation: Pressure gradient, with interference tube
    • Cartridge type: Pre-polarized condenser
    • Frequency response: 20 Hz - 20 kHz
    • Effective frequency range, ±2 dB, at 60 cm (23.6 in): 40 Hz - 18 kHz with typ. 3 dB soft boost at 15 kHz
    • Sensitivity, nominal, ±2 dB at 1 kHz: 19 mV/Pa; -34.4 dB re. 1 V/Pa
    • Equivalent noise level, A-weighted: Typ. 13 dB(A) re. 20 µPa (max. 15 dB(A))
    • Equivalent noise level, ITU-R BS.468-4: Typ. 24 dB (max. 26 dB)
    • Distortion, THD < 1%: 134 dB SPL RMS, 137 dB SPL peak
    • Dynamic range: Typ. 124 dB
    • Max. SPL, THD 10%: 138 dB SPL peak
    • Rated output impedance: 100 ohm
    • Minimum load impedance: 2 k ohm
    • Cable drive capability: 100 m (328 ft)
    • Output balance principle: Impedance balancing
    • Common mode rejection ratio (CMRR): > 40 dB
    • Power supply (for full performance): P48 (Phantom Power)
    • Current consumption: 3.5 mA
    • Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
    • Color: Matte black
    • Weight: 121 g (4.3 oz)
    • Microphone diameter: 0.75”
    • Capsule diameter: 0.75”
    • Microphone length: 4.9”
    • Maximum output voltage, RMS: 2.2 V
    • Polarity: +V at pin 2 for positive sound pressure
    • Temperature range: -40°C to 45°C (-40°F to 113°F)
    • Relative humidity (RH): Up to 90%

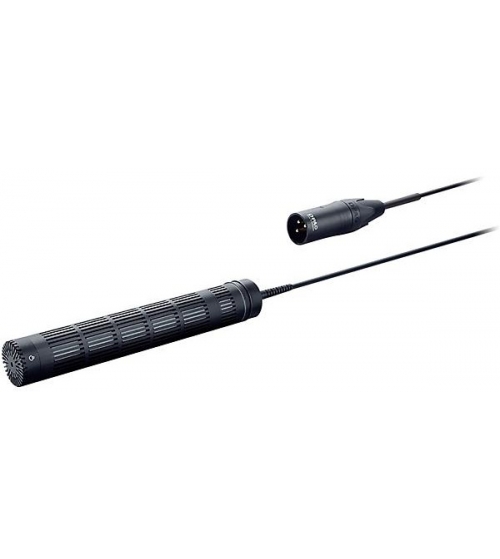

DPA 4017ER Shotgun Mic Rear Cable XLR

  • Product Code: 1500000408390
With DPA Microphones’ tiniest preamplifier design, the DPA Microphones 4017E Shotgun Microphone features an integrated cable solution with rear cable entry. It’s one of the shortest professional interference tube shotgun mics available today; only 4.9" in length and 4.3 oz in weight, including 9.8 ft cable and connector. It’s ideal for booming actors or capturing distant voice dialogue for broadcast and video situations.

The mic is immune to RF emission and the 0.75" condenser cartridge is capable of handling peak SPLs of 152 dB before clipping. The SM4000 Suspension Mount is included in the package. This allows the mic to be hung from the ceiling to create precision spot-miking of orchestra sections or ambience atmosphere.

Features

  • Small and lightweight
  • Excellent RF immunity
  • Highly immune to humidity
  • Uniform off-axis response
  • Highly directional pattern
  • Sleek shotgun for distant miking
  • Integrated active cable

    • Specs

    • Directional pattern: Supercardioid, lobe-shaped
    • Principle of operation: Pressure gradient, with interference tube
    • Cartridge type: Pre-polarized condenser
    • Frequency response: 20 Hz - 20 kHz
    • Effective frequency range, ±2 dB, at 60 cm (23.6 in): 40 Hz - 18 kHz with typ. 3 dB soft boost at 15 kHz
    • Sensitivity, nominal, ±2 dB at 1 kHz: 19 mV/Pa; -34.4 dB re. 1 V/Pa
    • Equivalent noise level, A-weighted: Typ. 13 dB(A) re. 20 µPa (max. 15 dB(A))
    • Equivalent noise level, ITU-R BS.468-4: Typ. 24 dB (max. 26 dB)
    • Distortion, THD < 1%: 134 dB SPL RMS, 137 dB SPL peak
    • Dynamic range: Typ. 124 dB
    • Max. SPL, THD 10%: 138 dB SPL peak
    • Rated output impedance: 100 ohm
    • Minimum load impedance: 2 k ohm
    • Cable drive capability: 100 m (328 ft)
    • Output balance principle: Impedance balancing
    • Common mode rejection ratio (CMRR): > 40 dB
    • Power supply (for full performance): P48 (Phantom Power)
    • Current consumption: 3.5 mA
    • Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
    • Color: Matte black
    • Weight: 121 g (4.3 oz)
    • Microphone diameter: 0.75”
    • Capsule diameter: 0.75”
    • Microphone length: 4.9”
    • Maximum output voltage, RMS: 2.2 V
    • Polarity: +V at pin 2 for positive sound pressure
    • Temperature range: -40°C to 45°C (-40°F to 113°F)
    • Relative humidity (RH): Up to 90%
DPA Microphones

$960.00
