Advanced Network Audio Interface With USB and MADI

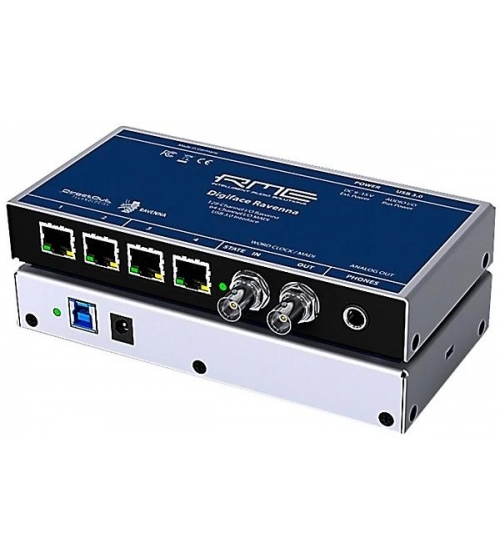

The Digiface Ravenna combines RME’s renowned USB and MADI technology with a dedicated RAVENNA module developed by DirectOut. This lightweight, portable interface delivers exceptional flexibility for professional networked audio applications, packed into a streamlined unit ideal for studio or remote workflows.128 Channels Over USB With Flexible Routing
You get up to 128 channels—64 via RAVENNA and 64 via MADI—transferred over USB 3.0 and controlled using RME’s TotalMix FX or the onboard RAVENNA web interface. Two BNC connectors serve as word clock I/O or switchable MADI ports, offering powerful I/O flexibility. A front-panel headphone output also functions as a stereo line output, perfect for monitoring or mixdown.Full Support for AES67, ST2110 and Redundancy
On the network side, Digiface Ravenna includes full support for AES67 and ST2110-30/31 audio-over-IP standards. It’s also equipped for ST2022-7 redundancy streaming, ensuring secure transmission in mission-critical environments. For standalone use, it functions as a mobile 64-channel RAVENNA/MADI format converter—no computer required.TotalMix FX Routing and Remote Control
TotalMix FX provides deep mixing and routing functionality across all available channels. Create unlimited submixes, control levels, and assign inputs to any output with zero latency. TotalMix Remote enables wireless or remote access to your full routing setup via iOS, Mac or PC—ideal for distributed studio workflows or front-of-house adjustments.Control Room Features Without DSP Effects
Like other models in the Digiface Series, the Ravenna version includes a comprehensive Control Room section with Talkback, Main/Phones, fader groups, mute groups and Mackie/OSC protocol support. While there’s no onboard EQ or reverb processing, the routing and monitor control features deliver all the flexibility modern engineers need.Included Software Bundle for Production and Performance
The Digiface Ravenna includes a powerful software bundle to get you creating right away:• Ozone 10 Elements – Full license, all-in-one mastering tool
• True Sound Drum Pack Sampler – Premium drum sound collection (ZIP file)
• S Gear Amp Simulation Software – Full license, amp simulation plugin for guitar
• Brainworx BX Opto Compressor – Full license, optical compressor plugin
• Brainworx BX Master Desk – Full license, mastering software plugin
• Gig Performer – Trial version, live performance plugin for set lists, backing tracks and more
• Modartt Pianoteq 6 – Trial version, virtual piano instrument
• GG Audio Blue 3 – Trial version, virtual organ plugin
• Tape It – Full license, record and share music from your iOS device
• Auto-Tune – 3-month trial, industry-standard pitch correction plugin
As with every RME interface, the Digiface Ravenna is engineered in Germany for long-term reliability, ultra-low latency and consistent professional performance. It’s a smart solution for pros who demand bulletproof stability and unmatched audio quality over networked and traditional workflows.
Features
- 256 channel 192 kHz USB audio interface
- Includes TotalMix FX and TotalMix Remote
- RJ45
- 100 Mbit/s, 1 Gbit/s
- Standard port LEDs: yellow connected, green data transmission
- Supports straight and crossover cables (Auto MDI-X)
- Network-based remote control of the unit (TotalMix Remote)
- Supports RAVENNA, AES67, ST 2110-30 / -31, ST 2022-7
- Network Layer 3
- Modes: Switched and Redundancy according to ST 2022-7
- 32 streams
- 128 channels Single Speed, 64 channels Double Speed, 32 channels Quad Speed
- Clock sources: PTP, Internal
- Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz, +/-12.5 %
- Routing: Channel-based routing matrix
- Configuration: Browser GUI, globcon control, NMOS IS-04 / IS-05
- Coaxial via BNC, 75 Ohm, according to AES10-1991
- High-sensitivity input stage (< 0.2 Vpp)
- Accepts 56 channel and 64 channel mode, plus 96k Frame
- Standard: up to 64 channels 24 bit 48 kHz
- S/MUX: up to 32 channels 24 bit 96 kHz
- S/MUX4: up to 16 channels 24 bit 192 kHz
- Lock range: 25 kHz – 54 kHz
- Coaxial via BNC, 75 Ohm, according to AES10-1991
- Output voltage 400 mVpp
- Cable length: up to 50 m
- Generates 56 channel and 64 channel mode, plus 96k Frame
- Standard: up to 64 channels 24 bit 48 kHz
- S/MUX / 96k Frame: up to 32 channels 24 bit 96 kHz
- S/MUX4: up to 16 channels 24 bit 192 kHz
- Dynamic range (DR): 110 dB RMS unweighted, 113 dBA
- Frequency response @ 44.1 kHz, -0.5 dB: 0 Hz – 20.8 kHz
- Frequency response @ 96 kHz, -0.5 dB: 0 Hz – 45 kHz
- Frequency response @ 192 kHz, -1 dB: 0 Hz - 89 kHz
- THD @ -1 dBFS: - 96 dB, 0.0016 %
- THD+N @ -1 dBFS: -95 dB, 0.0017 %
- Channel separation: > 100 dB
- Output: 6.3 mm TRS jack, unbalanced
- Output impedance: 2 Ohm
- Output level at 0 dBFS, 1 kOhm load: +9.5 dBu
- Max power @ 0.1% THD: 50 mW
- BNC, not terminated (10 kOhm)
- Switchable internal termination 75 Ohm
- Automatic Double/Quad Speed detection and conversion to Single Speed
- BNC
- Max level: 5 Vss
- Level with termination 75 Ohm: 4.0 Vss
- Internal impedance: 10 Ohm
- Output Analog Phones 129/130
- Dynamic range (DR): 110 dB RMS unweighted, 113 dBA
- Frequency response @ 44.1 kHz, -0.5 dB: 0 Hz – 20.8 kHz
- Frequency response @ 96 kHz, -0.5 dB: 0 Hz – 45 kHz
- Frequency response @ 192 kHz, -1 dB: 0 Hz - 89 kHz
- THD@-1dBFS:-96dB,0.0016%
- THD+N @ -1 dBFS: -95 dB, 0.0017 %
- Channel separation: > 100 dB
- Output: 6.3 mm TRS jack, unbalanced
- Output impedance: 2 Ohm
- Output level at 0 dBFS, 1 kOhm load: +9.5 dBu
- Max power @ 0.1% THD: 50 mW
- Clocks: Internal, RAVENNA (PTP), word, MADI
- Supported sample rates: 44.1 kHz up to 192 kHz
Specs
Gigabit Ethernet Port

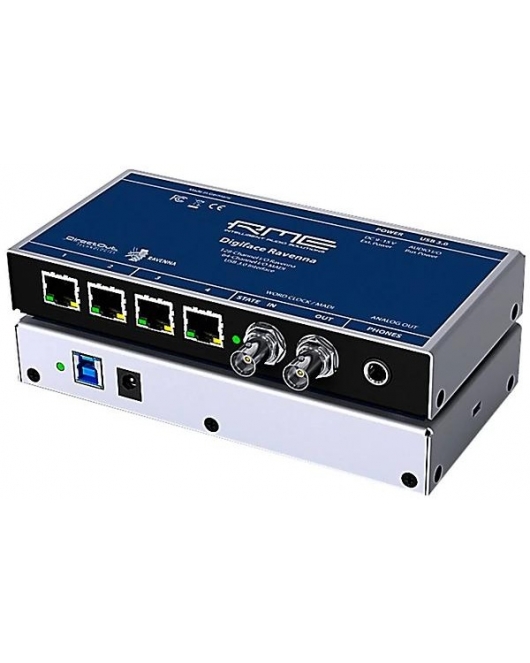

RME Digiface Ravenna Audio Interface
