The KSM137 is an end-address condenser microphone with a single cardioid polar pattern. Designed for studio use, yet rugged enough for live applications, the KSM137 can withstand extremely high sound pressure levels (SPL). Its low self-noise and extended frequency response make it ideal for recording instruments.

Versatile, durable, and precise, the KSM137 is an outstanding microphone for instruments ranging from percussion to wind, strings to brass, and piano to guitar.

Features

  • Highly consistent cardioid polar pattern
  • Ultra-thin, 2.5 micron, 24 karat gold-layered, low mass Mylar diaphragm for superior transient response
  • Class A, discrete, transformerless preamplifier for transparency, extremely fast transient response, no crossover distortion, and minimal harmonic and intermodulation distortion
  • Premium electronic components, including gold-plated internal and external connectors
  • Subsonic filter eliminates low frequency rumble (less than 17Hz) caused by mechanical vibration
  • Switchable 15dB pad for handling extremely high sound pressure levels (SPLs)
  • 3-position switchable pad (0dB, 15dB, and 25dB) for handling extremely high-sound pressure levels (SPLs)
  • 3-position switchable low-frequency filter reduces background noise and counteracts proximity effect
    • Performance Characteristics
    • Extended frequency response
    • Exceptional reproduction of low-frequency sounds
    • Can withstand high sound pressure levels (SPL)
    • Superior common mode rejection and suppression of radio frequency interference
    Common Applications
    • Acoustic instruments: piano, guitar, drums, percussion, strings
    • Wind instruments: brass and woodwind
    • Low frequency instruments: such as double bass, electric bass, kick drum
    • Overhead miking: drums or percussion
    • Ensembles: choral or orchestral
    • Room ambiance pick up: guitar amplifier or drums

      • Specs

      • Cartridge type: Permanently biased condenser
      • Frequency response: 20 to 20,000Hz
      • Directional polar pattern: Cardioid
      • Output impedance: 150 ? (actual)
      • Attenuation Switch
      • 0dB, 15dB, or 25dB attenuation
      • Low-frequency response switch: Flat; -6 db/octave below 115Hz
      • -18dB/octave below 80Hz
      • Phantom power: 48 Vdc ± 4 Vdc (IEC-268-15/DIN 45 596), positive pins 2 and 3
      • Current drain: 4.65mA typical at 48 Vdc
      • Common mode rejection: ?50dB, 20Hz to 20kHz
      • Polarity: Positive pressure on diaphragm produces positive voltage on output pin 2 relative to pin 3
      • Dimensions and weight: 20mm (0.8") diameter, 122mm (4.8") long
      • 100g (3.5oz.)
      • Sensitivity (typical, at 1000Hz; 1 Pa = 94dB SPL): -37dBV/Pa
      • Self-noise (typical, equivalent SPL; A-weighted, IEC 651): 14dB
      • Maximum SPL at 1kHz:
      • 5000? load (Attenuator on): 145 (160, 170)dB
      • 2500? load (Attenuator on): 139 (154, 164)dB
      • 1000? load (Attenuator on): 134 (149, 159)dB
      • Output clipping level*:
      • 5000? load: 15dBV
      • 2500? load: 9dBV
      • 1000? load: 3dBV
      • *20Hz to 20kHz; THD < 1%. THD of the microphone preamplifier when applied input signal is equivalent to the cartridge output at specified SPL
        Dynamic range:
      • 5000? load: 131dB
      • 2500? load: 125dB
      • 1000? load: 120dB
      • Signal-to-Noise Ratio**: 80dB
      • **S/N ratio is difference between 94dB SPL and equivalent SPL of self noise A-weighted

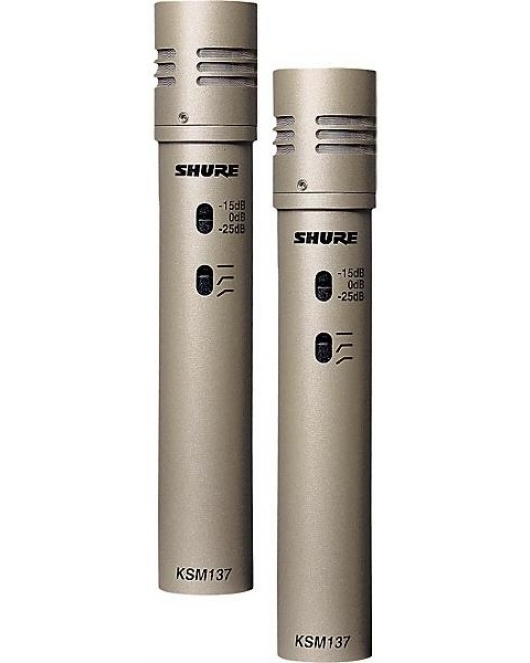

    Shure KSM137 SL Stereo Cardioid Condenser Pair

    • Product Code: 1279061079405
    The KSM137 is an end-address condenser microphone with a single cardioid polar pattern. Designed for studio use, yet rugged enough for live applications, the KSM137 can withstand extremely high sound pressure levels (SPL). Its low self-noise and extended frequency response make it ideal for recording instruments.

    Versatile, durable, and precise, the KSM137 is an outstanding microphone for instruments ranging from percussion to wind, strings to brass, and piano to guitar.

    Features

  • Highly consistent cardioid polar pattern
  • Ultra-thin, 2.5 micron, 24 karat gold-layered, low mass Mylar diaphragm for superior transient response
  • Class A, discrete, transformerless preamplifier for transparency, extremely fast transient response, no crossover distortion, and minimal harmonic and intermodulation distortion
  • Premium electronic components, including gold-plated internal and external connectors
  • Subsonic filter eliminates low frequency rumble (less than 17Hz) caused by mechanical vibration
  • Switchable 15dB pad for handling extremely high sound pressure levels (SPLs)
  • 3-position switchable pad (0dB, 15dB, and 25dB) for handling extremely high-sound pressure levels (SPLs)
  • 3-position switchable low-frequency filter reduces background noise and counteracts proximity effect
    • Performance Characteristics
    • Extended frequency response
    • Exceptional reproduction of low-frequency sounds
    • Can withstand high sound pressure levels (SPL)
    • Superior common mode rejection and suppression of radio frequency interference
    Common Applications
    • Acoustic instruments: piano, guitar, drums, percussion, strings
    • Wind instruments: brass and woodwind
    • Low frequency instruments: such as double bass, electric bass, kick drum
    • Overhead miking: drums or percussion
    • Ensembles: choral or orchestral
    • Room ambiance pick up: guitar amplifier or drums

      • Specs

      • Cartridge type: Permanently biased condenser
      • Frequency response: 20 to 20,000Hz
      • Directional polar pattern: Cardioid
      • Output impedance: 150 ? (actual)
      • Attenuation Switch
      • 0dB, 15dB, or 25dB attenuation
      • Low-frequency response switch: Flat; -6 db/octave below 115Hz
      • -18dB/octave below 80Hz
      • Phantom power: 48 Vdc ± 4 Vdc (IEC-268-15/DIN 45 596), positive pins 2 and 3
      • Current drain: 4.65mA typical at 48 Vdc
      • Common mode rejection: ?50dB, 20Hz to 20kHz
      • Polarity: Positive pressure on diaphragm produces positive voltage on output pin 2 relative to pin 3
      • Dimensions and weight: 20mm (0.8") diameter, 122mm (4.8") long
      • 100g (3.5oz.)
      • Sensitivity (typical, at 1000Hz; 1 Pa = 94dB SPL): -37dBV/Pa
      • Self-noise (typical, equivalent SPL; A-weighted, IEC 651): 14dB
      • Maximum SPL at 1kHz:
      • 5000? load (Attenuator on): 145 (160, 170)dB
      • 2500? load (Attenuator on): 139 (154, 164)dB
      • 1000? load (Attenuator on): 134 (149, 159)dB
      • Output clipping level*:
      • 5000? load: 15dBV
      • 2500? load: 9dBV
      • 1000? load: 3dBV
      • *20Hz to 20kHz; THD < 1%. THD of the microphone preamplifier when applied input signal is equivalent to the cartridge output at specified SPL
        Dynamic range:
      • 5000? load: 131dB
      • 2500? load: 125dB
      • 1000? load: 120dB
      • Signal-to-Noise Ratio**: 80dB
      • **S/N ratio is difference between 94dB SPL and equivalent SPL of self noise A-weighted
