The CROWN PCC-170 is a surface-mounted supercardioid microphone of professional quality. This handsomely styled unit is appropriate for use on the most elegant boardroom table or lectern. Other applications include churches, courtrooms and council chambers. Because of its highly directional pickup pattern, the CROWN PCC-170 minimizes background noise and feedback. The microphone reproduces the voice with a clean, clear and natural sound.
Since the microphone capsule is placed on a boundary or surface, direct and reflected sounds arrive at the diaphragm in-phase. This coherent addition of direct and reflected waves increase sensitivity 6 dB and prevents phase cancellations.
The mic capsule is small enough to ensure phase coherency up to the highest frequencies in the audible spectrum, resulting in a wide, smooth frequency response free of phase interference. Clarity and reach are also enhanced. Self-noise is low and sensitivity is very high and an RFI suppression is included. A bass-tilt switch allows the user to tailor the low-end response for particular applications.
Self-contained electronics eliminate the need for an in-line preamp. Powered by 12-48V phantom power, the PCC-170 has a low-impedance mic level balanced output which permits long cable runs without hum pickup or high-frequency loss.
Since the microphone capsule is placed on a boundary or surface, direct and reflected sounds arrive at the diaphragm in-phase. This coherent addition of direct and reflected waves increase sensitivity 6 dB and prevents phase cancellations.
The mic capsule is small enough to ensure phase coherency up to the highest frequencies in the audible spectrum, resulting in a wide, smooth frequency response free of phase interference. Clarity and reach are also enhanced. Self-noise is low and sensitivity is very high and an RFI suppression is included. A bass-tilt switch allows the user to tailor the low-end response for particular applications.
Self-contained electronics eliminate the need for an in-line preamp. Powered by 12-48V phantom power, the PCC-170 has a low-impedance mic level balanced output which permits long cable runs without hum pickup or high-frequency loss.
Features
- Supercardioid polar pattern offers high-gain-before-feedback
- Phase coherent cardioid design prevents coloration from surface sound reflections
- Wide and smooth frequency response
- Three-position bass-tilt switch
- Small and inconspicuous
- Applications:
- Security
- Lectern
- Houses of worship
- Distance learning
- Conferencing
- Polar pattern: supercardioid
- Frequency range: 50 to 20,000 Hz
- Sensitivity: 22 mV/Pa (-30 dBV)
- Max. SPL: 120 dB
- Equivalent noise level: 22 dB-A
- Signal/noise ratio: 72 dB (A-weighted)
- Impedance: 150 ohms
- Power requirement: 12 to 48 V phantom power to DIN/IEC
- Connector: Switchcraft TB3M
- Cable: 170 g (6 oz.)
- Finish: black
- Dimensions: 8.6 x 12.3 x 2.3 cm (3.4 x 4.84 x 0.9 in.)
- Net weight: 170 g (6 oz.)
Specs

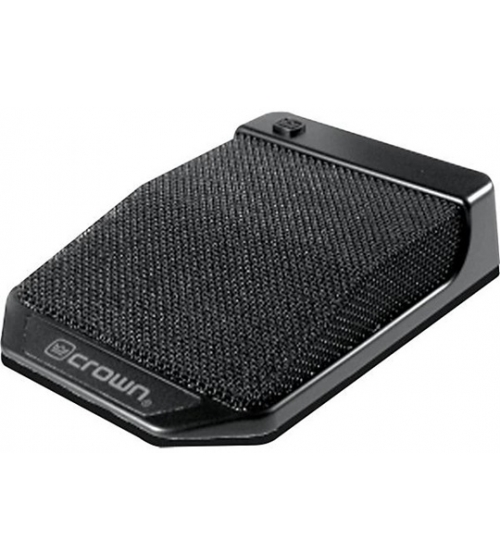

Crown PCC170 Surface Mount Supercardioid Boundary Mic
- Product Code: 1302553613398
The CROWN PCC-170 is a surface-mounted supercardioid microphone of professional quality. This handsomely styled unit is appropriate for use on the most elegant boardroom table or lectern. Other applications include churches, courtrooms and council chambers. Because of its highly directional pickup pattern, the CROWN PCC-170 minimizes background noise and feedback. The microphone reproduces the voice with a clean, clear and natural sound.
Since the microphone capsule is placed on a boundary or surface, direct and reflected sounds arrive at the diaphragm in-phase. This coherent addition of direct and reflected waves increase sensitivity 6 dB and prevents phase cancellations.
The mic capsule is small enough to ensure phase coherency up to the highest frequencies in the audible spectrum, resulting in a wide, smooth frequency response free of phase interference. Clarity and reach are also enhanced. Self-noise is low and sensitivity is very high and an RFI suppression is included. A bass-tilt switch allows the user to tailor the low-end response for particular applications.
Self-contained electronics eliminate the need for an in-line preamp. Powered by 12-48V phantom power, the PCC-170 has a low-impedance mic level balanced output which permits long cable runs without hum pickup or high-frequency loss.
Since the microphone capsule is placed on a boundary or surface, direct and reflected sounds arrive at the diaphragm in-phase. This coherent addition of direct and reflected waves increase sensitivity 6 dB and prevents phase cancellations.
The mic capsule is small enough to ensure phase coherency up to the highest frequencies in the audible spectrum, resulting in a wide, smooth frequency response free of phase interference. Clarity and reach are also enhanced. Self-noise is low and sensitivity is very high and an RFI suppression is included. A bass-tilt switch allows the user to tailor the low-end response for particular applications.
Self-contained electronics eliminate the need for an in-line preamp. Powered by 12-48V phantom power, the PCC-170 has a low-impedance mic level balanced output which permits long cable runs without hum pickup or high-frequency loss.
Features
- Supercardioid polar pattern offers high-gain-before-feedback
- Phase coherent cardioid design prevents coloration from surface sound reflections
- Wide and smooth frequency response
- Three-position bass-tilt switch
- Small and inconspicuous
- Applications:
- Security
- Lectern
- Houses of worship
- Distance learning
- Conferencing
- Polar pattern: supercardioid
- Frequency range: 50 to 20,000 Hz
- Sensitivity: 22 mV/Pa (-30 dBV)
- Max. SPL: 120 dB
- Equivalent noise level: 22 dB-A
- Signal/noise ratio: 72 dB (A-weighted)
- Impedance: 150 ohms
- Power requirement: 12 to 48 V phantom power to DIN/IEC
- Connector: Switchcraft TB3M
- Cable: 170 g (6 oz.)
- Finish: black
- Dimensions: 8.6 x 12.3 x 2.3 cm (3.4 x 4.84 x 0.9 in.)
- Net weight: 170 g (6 oz.)
Specs
- Brand: Crown
- Viewed: 19
- Availability: In Stock
