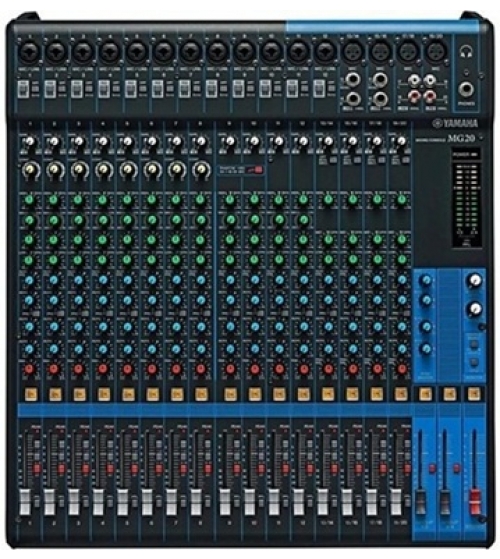

Now in its third incarnation, the MG Series embodies the pursuit of design excellence, and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction. The Yamaha MG20 is a 20-channel mixing console with 16 mic (XLR hybrid) and 20 line inputs (12 mono + 4 stereo), four GROUP buses + one stereo bus and four AUX sends.
With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class.
With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class.
Features
- 20-channel mixing console
- Max. 16 mic/20 line inputs (12 mono + 4 stereo)
- 4 GROUP buses + 1 stereo bus
- 4 AUX (including FX)
- "D-PRE" mic preamps with an inverted Darlington circuit
- 1-Knob compressors
- PAD switch on mono inputs
- +48V phantom power
- XLR balanced outputs
- Internal universal power supply for world-wide use
- Rackmount kit Included
- Metal chassis
- Onboard processors: SPX algorithm: 24 programs
- Phantom power: +48 V
- Input Channels: 12 Mono[MIC/LINE], stereo[LINE]: 4
- Output Channels: STEREO OUT: 2
- MONITOR OUT: 1
- PHONES: 1
- AUX SEND: 1
- Bus: Stereo: 1, GROUP: 4, AUX [FX]: 4
- Input Channel Function
- PAD: 26dB (Mono)
- HPF: 80Hz, 12dB/oct (Mono)
- COMP: 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0dB to 7dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
- EQ HIGH: Gain: +15dB/-15dB, Frequency: 10kHz shelving
- EQ MID: Gain: +15dB/-15dB, Frequency: 2.5kHz peaking
- EQ LOW: Gain: +15dB/-15dB, Frequency: 100Hz shelving
- PEAK LED: LED turns on when post EQ signal reaches 3dB below clipping
- Level Meter: 2 x 12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -20, -25, -30 dB]
Specs

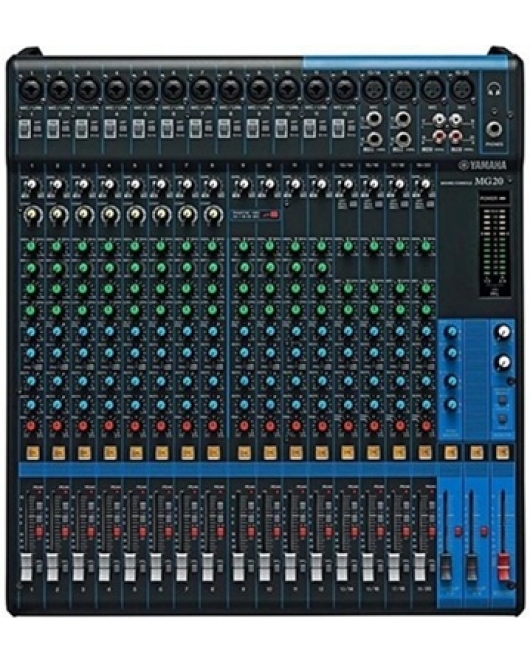

Yamaha MG20 20 Channel Mixer With Compression
- Product Code: 1391442168046
Now in its third incarnation, the MG Series embodies the pursuit of design excellence, and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction. The Yamaha MG20 is a 20-channel mixing console with 16 mic (XLR hybrid) and 20 line inputs (12 mono + 4 stereo), four GROUP buses + one stereo bus and four AUX sends.
With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class.
With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class.
Features
- 20-channel mixing console
- Max. 16 mic/20 line inputs (12 mono + 4 stereo)
- 4 GROUP buses + 1 stereo bus
- 4 AUX (including FX)
- "D-PRE" mic preamps with an inverted Darlington circuit
- 1-Knob compressors
- PAD switch on mono inputs
- +48V phantom power
- XLR balanced outputs
- Internal universal power supply for world-wide use
- Rackmount kit Included
- Metal chassis
- Onboard processors: SPX algorithm: 24 programs
- Phantom power: +48 V
- Input Channels: 12 Mono[MIC/LINE], stereo[LINE]: 4
- Output Channels: STEREO OUT: 2
- MONITOR OUT: 1
- PHONES: 1
- AUX SEND: 1
- Bus: Stereo: 1, GROUP: 4, AUX [FX]: 4
- Input Channel Function
- PAD: 26dB (Mono)
- HPF: 80Hz, 12dB/oct (Mono)
- COMP: 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0dB to 7dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
- EQ HIGH: Gain: +15dB/-15dB, Frequency: 10kHz shelving
- EQ MID: Gain: +15dB/-15dB, Frequency: 2.5kHz peaking
- EQ LOW: Gain: +15dB/-15dB, Frequency: 100Hz shelving
- PEAK LED: LED turns on when post EQ signal reaches 3dB below clipping
- Level Meter: 2 x 12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -20, -25, -30 dB]
Specs
- Brand: Yamaha
- Viewed: 12
- Availability: In Stock
