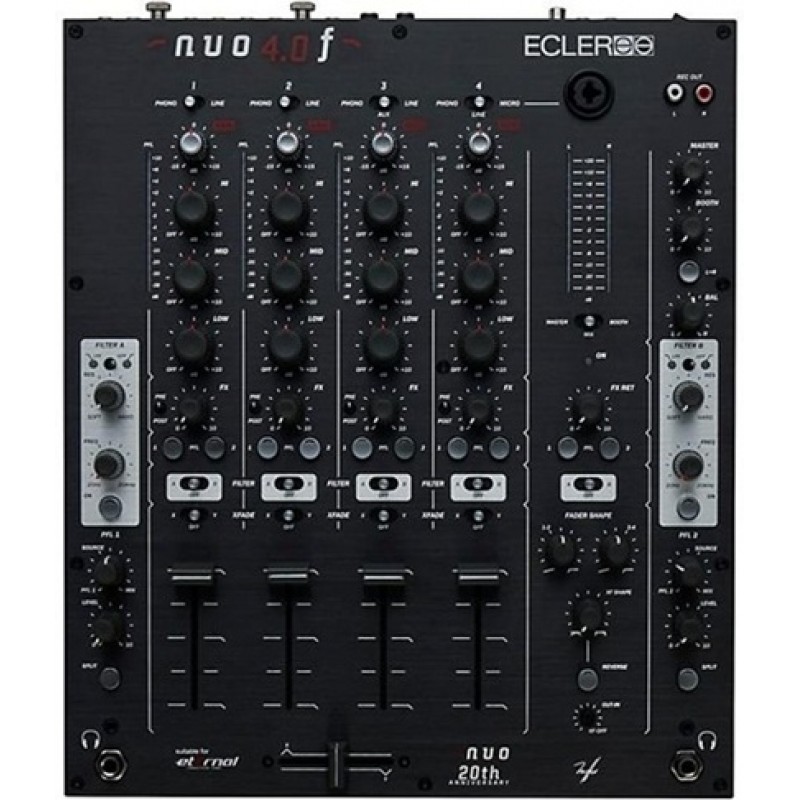

Ecler NUO 4.0F Analogue 4-Channel DJ Mixer Black

$815.00

Brand: Ecler
Product Code: 1500000467052
Availability: In Stock

Description
Reviews (0)

Black Analogue DJ Mixer with Smooth Control for DJs and Professionals

The Ecler NUO 4.0F analog 4-channel DJ mixer black stands out with its sleek black colorway and precision analog circuitry, engineered for club-driven mixing and technical performance. Two analog VCF filters provide real-time frequency shaping, delivering smooth transitions and dramatic effects at the turn of a knob. The mixer’s layout includes four PHONO/LINE inputs, an AUX and a combo XLR/jack mic connector, supporting collaborative sets with dual headphone outputs for independent cueing. Magnetic crossfader compatibility and customizable fader curves allow for advanced scratching, cutting and blending. Extensive output options for booth and house, along with FX routing and inserts, give DJs tight control and adaptability in any setup.

Analog VCF Filters Enhance Live Frequency Control

Dual high-pass and low-pass VCF filters, with variable resonance up to +12dB, cover the entire frequency spectrum from 20Hz–20kHz. These analog filters let users carve out frequencies, build tension during breakdowns, and shape transitions with musical warmth. Each filter responds smoothly to adjustments, allowing for bold sweeps and subtle moves in real time. This level of control delivers creative impact, letting you tailor the sound to the room’s energy.

Magnetic Crossfader and Adjustable Faders Support Advanced Mixing

Magnetic ETERNAL crossfader support means every cut, scratch, and blend maintains a consistent, reliable feel. Each channel uses a 60mm Ecler fader with curve control, so users can fine-tune response for their mixing style. Scratch artists and blend-focused mixers benefit from durable mechanics and precise movement, keeping transitions tight and flow uninterrupted during long sets.

Extensive Connectivity and Dual Headphone Outputs Aid Collaboration

Four PHONO/LINE inputs, AUX and a balanced XLR/jack microphone input offer direct access for turntables, CDJs and digital sources. The unit’s two independent headphone PFL outputs make B2B sets or team mixing possible, with clear cueing for each performer. Multiple XLR and RCA outputs, FX send/return, and a master insert open up routing for booth feeds, recording or external effects—streamlining your workflow in club or studio spaces.

Rugged Construction and Black Finish Increase Longevity

Steel chassis, solid knobs and robust fader mechanics protect the mixer from everyday wear and rough handling. The black colorway resists visible marks and matches professional setups, while the 10.41 lb unit’s compact form fits desktop or rack-mount installations. Internal power supply and quality connectors ensure stable signal and years of operation. The mixer arrives with RCA caps and IEC cable, ready for demanding environments.

Endless Performance Possibilities With the Ecler NUO 4.0F Mixer

Turntablists, technical mixers and club-focused performers benefit from deep filter sweeps, customizable faders and flexible routing in the black NUO 4.0F. Every feature encourages hands-on creativity, helping users shape memorable sets and execute detailed transitions. The precise controls and analog sound design all combine to support confident mixing and lasting performance, set after set.

Features

Four PHONO/LINE inputs plus AUX handle diverse setups with ease
Two VCF filters with variable resonance enable creative sound shaping
FX Send and Return allow flexible routing for external effects
Dual PFL headphone outputs support seamless back-to-back DJ sets
Eternal magnetic crossfader delivers smooth transitions and long-lasting durability
60mm Ecler faders offer precise control and customizable fade curves
Master/Booth outputs on XLR ensure clean sound for large venues
Tone controls with ±15dB boost/cut adjust BASS, MID, TREBLE frequencies

Specs

Inputs

Line Inputs: 5 Stereo Unbalanced (RCA)
Phono Inputs: 4 Stereo Unbalanced (RCA)
Microphone Input: 1 Mono Balanced (Combo XLR3F / 6.3 mm TRS)
FX Return: 1 Stereo Unbalanced (RCA)

Input Sensitivity / Impedance

Line: 0dBV/50 kohm
Phono: -40dBV/50 kohm
Microphone: -50dBV/>1 kohm
FX Return: 0dBV/>6 kohm

Audio Performance

Frequency Response (Line): 10Hz–30kHz (-1dB)
Frequency Response (Micro): 10Hz–25kHz (-1dB)
Frequency Response (Phono): RIAA ±0.5dB
Frequency Response (FX Return): 10Hz–50kHz (-1dB)
THD+N (Line): <0.03%
THD+N (Micro): <0.08%
THD+N (Phono): <0.08%
THD+N (FX Return): <0.003%
CMRR (Micro): >75dB @ 1kHz
Signal-to-Noise Ratio (Line): >103dB
Signal-to-Noise Ratio (Micro): >85dB
Signal-to-Noise Ratio (Phono): >90dB
Signal-to-Noise Ratio (FX Return): >110dB

Controls

Trim Control: ±15dB (Inputs 1–4)
Tone Control (Inputs 1–4): Bass +10/-30dB, Mid +10/-25dB, Treble +10/-30dB
Tone Cut Frequencies (-6dB, 12dB/Oct): Bass 200Hz, Mid 200Hz–6.8kHz, Treble 6.8kHz
VCF Filters: Frequency 20Hz–20kHz, Max Resonance +12dB

Outputs

House Outputs: 1 Stereo Balanced (XLR), 1 Stereo Unbalanced (RCA)
Booth Outputs: 1 Stereo Balanced (XLR), 1 Stereo Unbalanced (RCA)
Headphones: 4 Stereo Unbalanced (2 x 6.3 mm, 2 x 3.5 mm; 2 independent PFL)
FX Send: 1 Stereo Unbalanced (RCA)
Rec Out: 1 Stereo Unbalanced (RCA)

Output Levels / Minimum Load

House (Balanced): 0dBV/600 ohm (1V; +12dB = 4V)
House (Unbalanced): 0dBV/2.2 kohm (1V; +12dB = 4V)
Booth (Balanced): 0dB/2.2 kohm (1V; +12dB = 4V)
Booth (Unbalanced): 0dBV/2.2 kohm (1V; +12dB = 4V)
Rec: 0dBV/10 kohm
Headphones: 200 Mohm/200 ohm (THD 1%)
FX Send: 0dBV/2.2 kohm
Max Undistorted Output Level (Balanced): 21dBV (23dBu)
Max Undistorted Output Level (Unbalanced): 21dBV (23dBu)

Miscellaneous

Faders: 60 mm long Ecler faders
Phantom Power: 18 VDC / 5 mA max (default ON)
Input VU Meter: 12-LED (-38dBV to +10dBV)
House/Booth VU Meter: 12-LED (-30dBV to +20dBV)

Electrical

Power Supply: Internal
AC Input: 90–264 VAC, 47–63Hz
Connector: 15 A IEC Inlet
Power Consumption: 37 VA

Physical

Operating Temperature: 23 °F–113 °F
Operating Humidity: 20–90% RH (no condensation)
Storage Temperature: 14 °F–122 °F
Storage Humidity: <90% RH (no condensation)
Installation: Desktop or Rack Mount (with accessories)
Included Accessories: IEC Cable, 8 RCA Caps (for unused phono inputs)
Optional Accessories: Ecler ETERNAL Crossfader
Dimensions: 12.6" × 3.13" × 14.65" (320 × 79.4 × 372 mm)
Weight: 10.41 lb. (4.72 kg)
Shipping Dimensions: 19.49" × 6.89" × 17.13" (495 × 175 × 435 mm)
Shipping Weight: 13.54 lb. (6.14 kg)
