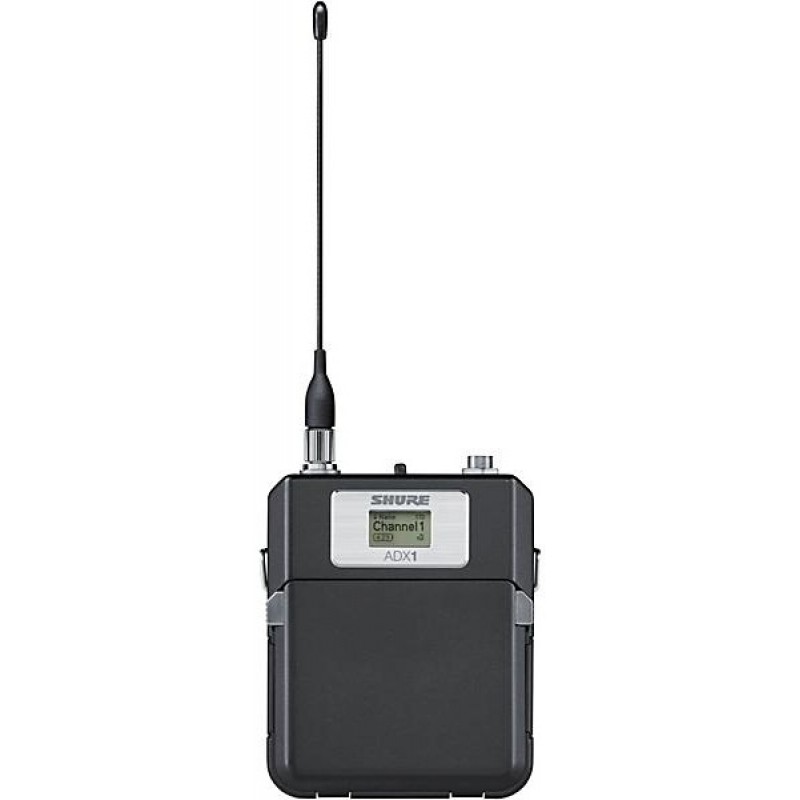

Shure Axient Digital ADX1 Bodypack Transmitter with LEMO3 connector Band G57

$939.00

Brand: Shure
Product Code: 1500000324009
Availability: In Stock

Description
Reviews (0)

ADX1, like all ADX transmitters, sets the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth. Includes two SB910 rechargeable batteries.

Features

Removable antenna and fully concealed buttons and switch
Two connector options: TA4 and LEMO3
Advanced control menu with powerful features
Durable, moisture-resistant, lightweight metal case
Up to 10 hours of runtime with SB910 rechargeable batter
Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
External contacts for docked charging
Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
Encryption-enabled, secure transmission

Specs

RF Carrier Range:

470–960 MHz
Note: Varies by region (See Frequency Range and Ouput Power table)

Working Range:

100 m (330 ft)
Note: Actual range depends on RF signal absorption, reflection and interference.

RF Tuning Step Size:

25 kHz, varies by region

Image Rejection:

>70 dB, typical

RF Sensitivity:

−98 dBm at 10-5 BER

Latency:

Standard mode: 2.0 ms
High Density mode: 2.9 ms

Audio Frequency Response:

AD1: 20 Hz – 20 kHz (±1 dB)
AD2: 20 Hz – 20 kHz (±1 dB)
ADX1: 20 Hz – 20 kHz (±1 dB)
ADX1M: 20 Hz – 20 kHz (±1 dB)
ADX2/ADX2FD: 20 Hz – 20 kHz (±1 dB)
Note: Dependent on microphone type

Audio Dynamic Range:

A-weighted, typical, System Gain @ +10:
XLR Analog Output: 120 dB (A-weighted); 117 (unweighted)
Dante Digital Output: 130 dB (A-weighted); 126 (unweighted)

Total Harmonic Distortion:

−6 dBFS input, 1 kHz, System Gain @ +10
<0.01%:
System Audio Polarity:

Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output.

Operating Temperature Range:
