Shure ADX2 K8B Wireless Transmitter Band G57
$1,275.00
- Brand: Shure
- Product Code: 1500000325742
- Availability: In Stock

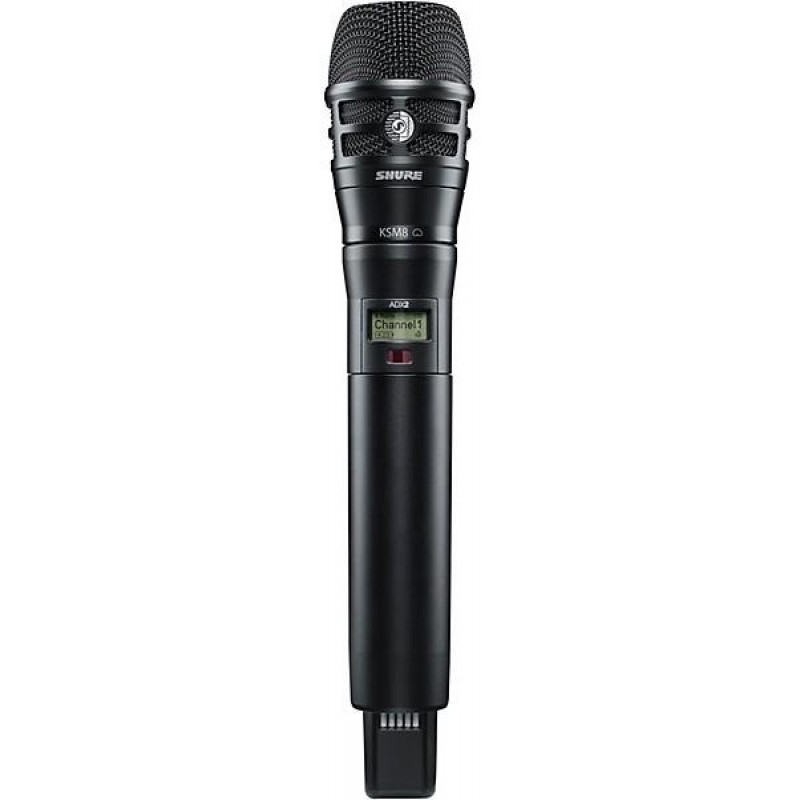

Shure Axient Digital ADX2 K8B KSM8 Black G57
The black Shure ADX2/K8B is a digital handheld wireless microphone transmitter compatible with Axient Digital series receivers. It is ShowLink-enabled for automatic interference avoidance and real-time remote control of parameters.The ADX2/K8B comes equipped with a KSM8 dual-diaphragm dynamic capsule that minimizes proximity effect, delivering a consistent sound even when the distance between the mic and the sound source varies. The cardioid polar pattern provides a clean, richly detailed signal with reduced feedback, great for speech and vocals in live venues.
The transmitter operates in a single 146MHz ultrawide UHF bandwidth. It provides up to 9 hours of operation on an SB920 rechargeable battery, with a transmission range up to 330' and a selectable 2/10/40mW RF output power.
With a durable, moisture-resistant, lightweight aluminum case, the ADX2/K8B transmitter delivers pristine audio quality, mission-critical RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options, making it ideal for high-profile, sound-reinforcement applications.
Features
- Quickly syncs with a wireless receiver via infrared at the touch of a button
- Automatic Gain adjusts the mic input level for you
- power button conveniently doubles as mute switch, while preserving RF lock
- Frequency and power lockout functions prevent accidental or unauthorized changes during events
- Backlit LCD with easy-to-navigate menu and controls lets you quickly access frequency, group, and channel settings, along with mute and lock status, RF output, and remaining battery life
- Offset function lets you balance mic levels when assigning multiple transmitters to a single receiver slot
- Adjustment range: -12 to +21dB
- 2/10/40mW selectable RF output power allows you to increase either the transmitter's range or the number of mics operating simultaneously
- Two transmission modes: Standard for optimal coverage and High-Density for maximum system channel count and robust coverage
- Wireless Transmission: Digital UHF
- RF Frequency Band: 417 to 616MHz
- RF Bandwidth: 146MHz
- Frequency Step Size: 25kHz
- Max Operating Range: 328.1' / 100 m (Line of Sight)
- Latency: 2 to 2.9 ms (Selectable)
- Encryption: AES 256
- Modulation: Proprietary
- Form Factor: Handheld
- RF Output Power: 2 / 10 / 40 mW
- Audio I/O: None
- Pad: 12 dB
- Muting: Mute Switch
- Audio Input Level: 145dB
- Gain Range: -12 to +21dB (3dB Steps)
- Sync Method: IR
- Antenna: 1 x Internal (Handheld)
- Power Requirements: Battery
- Battery Type: 1 x Rechargeable (Included, Replaceable)
- Approx. Battery Life Med.: 9 Hours (Lithium)
- Display & Indicators: 1 x LCD (Battery Status, Channel, Group, Signal Strength)
- Housing: Aluminum
- Operating Temperature: 0 to 122°F / -17 to 50°C
- Storage Temperature: -20 to 165°F / -28 to 73°C
- Dimensions: 2x10" / 51x254 mm
- Weight: 11.9 oz. / 338 g (without batteries)
- Form Factor: Handheld Capsule
- Color: Black
- Sound Field: Mono
- Capsule: Dynamic
- Polar Pattern: Cardioid
- Frequency Range: 40Hz to 16kHz
- Package Weight: 2.18 lb
- Box Dimensions (LxWxH): 13.8 x 6.65 x 3.8"
